Understanding Cat6A vs Cat8 for High-Speed Networks
As network speeds continue to increase, choosing the right copper cabling category becomes critical for performance and future-proofing. This comprehensive guide compares Cat6A and Cat8 cables to help you make informed decisions for your infrastructure investments.
Cat6A Overview
Category 6A (Augmented) cable represents the mature, proven solution for 10 Gigabit Ethernet applications. It supports 10Gbps up to 100 meters and operates at frequencies up to 500 MHz, making it the backbone of many enterprise networks today.
Cat6A Technical Specifications
- Bandwidth: 500 MHz
- Maximum Speed: 10 Gbps
- Maximum Distance: 100 meters (328 feet)
- Shielding Options: Available in both UTP (Unshielded) and STP (Shielded) variants
- Primary Applications: 10GBASE-T, general data center use, horizontal cabling
- Connector Type: RJ45 (8P8C)
Cat6A Advantages
- Full 100-meter reach: Supports 10 Gbps over the full horizontal distance
- Cost-effective: Lower cost per port compared to higher categories
- Mature ecosystem: Wide availability of components and proven reliability
- Installation flexibility: UTP variant easier to install and terminate
- Backward compatibility: Works with all lower category applications
Cat8 Overview
Category 8 cable represents the cutting edge of copper cabling technology, designed specifically for high-speed data center applications. It supports 25 and 40 Gigabit Ethernet over shorter distances, making it ideal for top-of-rack and server connections.
Cat8 Technical Specifications
- Bandwidth: 2000 MHz (2 GHz)
- Maximum Speed: 25/40 Gbps
- Maximum Distance: 30 meters (98 feet)
- Shielding: Always shielded (S/FTP or F/UTP construction)
- Primary Applications: 25GBASE-T, 40GBASE-T, top-of-rack connections
- Connector Types: RJ45 or TERA/GG45 (depending on variant)
Cat8 Advantages
- Higher speeds: Supports 25 Gbps and 40 Gbps applications
- Superior EMI protection: Always shielded for high-density environments
- Future-proof: Ready for emerging high-speed applications
- Data center optimized: Designed specifically for short-reach, high-speed links
- Lower latency: Optimized electrical characteristics for high-frequency signals
Performance Comparison

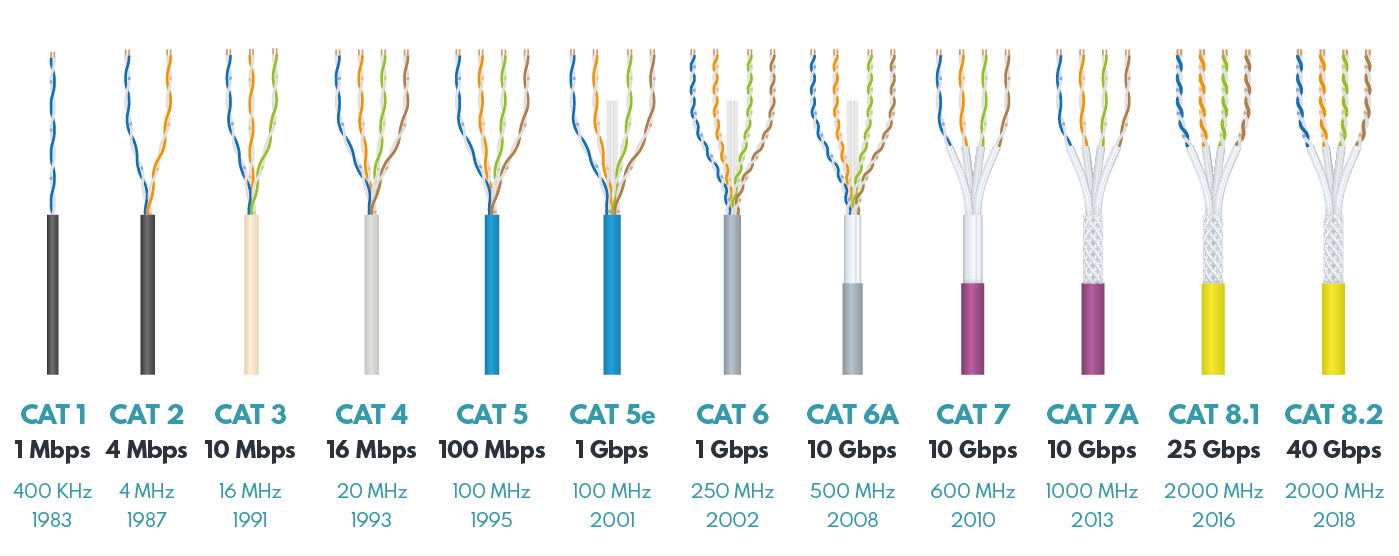

Side-by-Side Comparison
Cat6A Strengths
- 100-meter reach for 10 Gbps
- Lower total cost of ownership
- Mature technology with wide vendor support
- Available in UTP for easier installation
- Proven reliability in enterprise environments
- Extensive ecosystem of compatible components
Cat8 Strengths
- Higher speeds (25/40 Gbps)
- Superior electromagnetic interference protection
- Future-proof for emerging applications
- Optimized for high-density data center environments
- Lower power consumption per Gbps
- Reduced cable bundle sizes for same bandwidth
Application Recommendations
Choose Cat6A When:
- You need 10 Gbps over distances up to 100 meters
- Budget constraints are a primary concern
- Installing horizontal cabling in office environments
- Working with existing 10GBASE-T infrastructure
- Deploying in environments with moderate EMI
- Need maximum flexibility in installation methods
Choose Cat8 When:
- You need 25 Gbps or 40 Gbps speeds
- Working within 30-meter distance limitations
- Connecting top-of-rack switches to servers
- High-density data center environments with significant EMI
- Future-proofing for emerging high-speed applications
- Maximizing port density in limited rack space
Installation and Cost Considerations
Installation Requirements
Both cable types require careful installation practices, but Cat8's higher performance comes with stricter requirements:
- Bend radius: Cat8 requires more careful handling due to shielding
- Termination quality: Cat8 demands higher precision in connector installation
- Grounding: Cat8 shielding requires proper grounding throughout the system
- Testing: Cat8 requires more sophisticated test equipment and procedures
Total Cost of Ownership
Consider these factors when evaluating costs:
- Cable cost: Cat8 typically costs 2-3x more than Cat6A
- Installation labor: Cat8 requires more skilled technicians
- Testing equipment: Cat8 certification requires higher-end test equipment
- Future value: Cat8 provides longer technology lifecycle
Decision Framework
For most enterprise applications requiring 10 Gbps over standard distances, Cat6A remains the optimal choice. Reserve Cat8 for specific high-speed, short-distance applications where its capabilities are truly needed, such as data center top-of-rack connections or future 25G/40G deployments.
Conclusion
The choice between Cat6A and Cat8 depends on your specific application requirements, distance limitations, and budget constraints. Cat6A continues to be the workhorse for most enterprise applications, while Cat8 serves specialized high-speed, short-distance needs in data centers.
