Fiber Patch Panels - Critical Role in the Data Center
In today's data centers, speed and density are paramount. The backbone of every high-performance network—from AI clusters to hyperscale cloud platforms—is the physical fiber optic infrastructure.
High-density patch panels are the central nervous system of this infrastructure, providing a crucial, organized hub for managing the massive number of fiber connections required for 400G, 800G, and future terabit networking. They provide the flexibility and scalability to grow and reconfigure as needed, organization and management of the data center, protection of expensive equipment and durability and longevity by shielding permanent infrastructure connections.
Solving the AI & Hyperscale Infrastructure Challenge
The Challenge
Modern AI/ML workloads demand massive east-west bandwidth. Traditional, low-density cabling creates a "physical layer bottleneck" that limits GPU cluster performance, complicates network management, and wastes valuable rack space.
Limited GPU cluster performance due to physical layer constraints
Complex network management with point-to-point cabling
Wasted rack space with low-density solutions
Critical Point: As you scale to 400G and 800G, a robust and ultra-dense structured cabling strategy is no longer optional—it's essential for performance and ROI.
Our Solution
The EVO™ and EXO™ platforms are not just patch panels; they are engineered ecosystems for high-speed fiber management. They deliver industry-leading density and signal integrity, creating a reliable physical layer that allows your active switches and optics to perform at their full potential.
Industry-leading density with up to 144 duplex links per 1RU
Ultra-low loss engineering for optimal signal integrity
Modular ecosystem supporting 400G, 800G, and future 1.6T speeds
Result: A foundation for performance that maximizes your infrastructure investment while enabling seamless scaling for future networking requirements.
Two Platforms for Scalable Connectivity
Choose the right platform for your infrastructure needs, from ultra-high-density hyperscale deployments to specialized wavelength division multiplexing applications.
EVO™ Platform
Ultra-High-DensityEngineered for maximum fiber density in hyperscale data centers and large AI clusters
Key Features:
Industry-Leading Density: Provides connectivity for up to 48 QSFP-DD/OSFP transceivers (144 duplex LC links) in a 2RU chassis

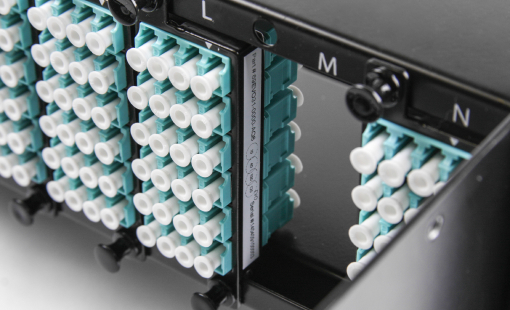

MTP-to-LC Breakouts: Modular cassettes efficiently break out high-speed MTP-12/16/24 trunk cables into duplex LC connections
Ultra-Low Insertion Loss: Features typical loss of <0.55dB (MM) and <0.75dB (SM) per cassette, protecting your optical power budget
Ideal Applications:
- - Hyperscale data centers maximizing connectivity per square foot
- - Large AI training facilities requiring structured cabling for thousands of GPU connections

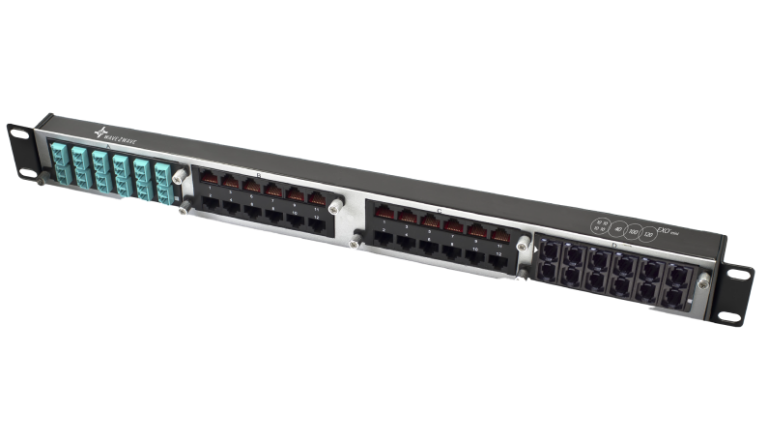

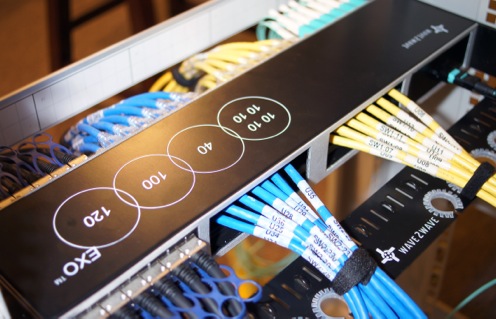

EXO™ Platform
WDM SpecializedPerfect for service providers or enterprises needing to dramatically increase the capacity of existing fiber infrastructure
Key Features:
Wavelength Division Multiplexing: Utilizes passive WDM technology to combine multiple data streams (for example 4, 8, or 16 channels) onto a single fiber pair
Massive Fiber Savings: Increase the capacity of dark fiber or campus links by up to 16x without laying new cables
Protocol Agnostic: Transparently supports a variety of services like Ethernet, Fibre Channel, and SONET over the same fiber
Ideal Applications:
- - Data center interconnects over limited fiber pairs
- - 5G networks and service provider backhaul
Why Industry Leaders Choose Wave2Wave
Our platforms deliver unmatched performance, density, and reliability for mission-critical infrastructure deployments across the globe.
Density Leadership
Our EVO™ platform offers the highest MTP and LC termination density in the industry, saving up to 80% of rack space compared to traditional solutions.
Enables AI/ML Performance
We provide the stable, high-performance physical foundation that lossless RoCEv2 and InfiniBand fabrics for GPU clusters depend on.
Future-Proof Architecture
Our modular systems support MTP-12, MTP-16, and MTP-24 connectors, ensuring you're ready for the cabling requirements of 400G, 800G, and future 1.6T optics.
Operational Simplicity
Tool-free, hot-swappable cassettes simplify installation and allow for rapid moves, adds, and changes without network disruption.
EVO™ & EXO™ Platform Gallery
Explore detailed views of our high-density fiber management platforms, showcasing the engineering excellence and modular design that powers next-generation data centers.

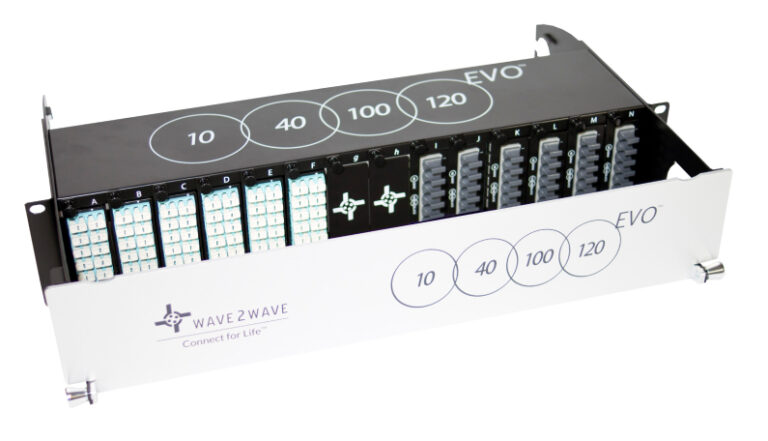

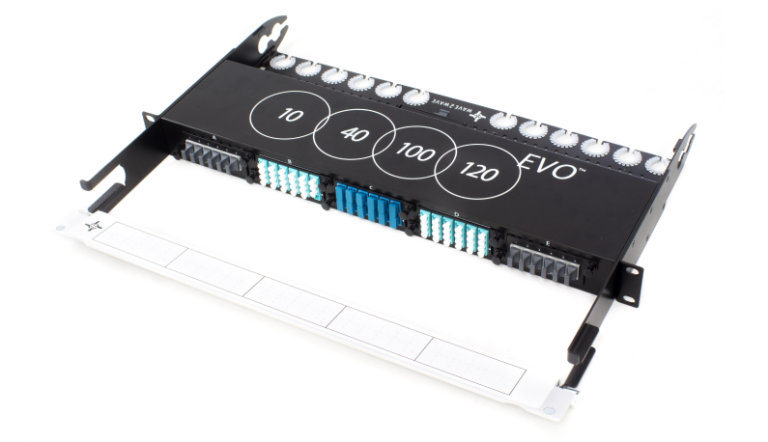

EVO™ 2RU High-Density Platform

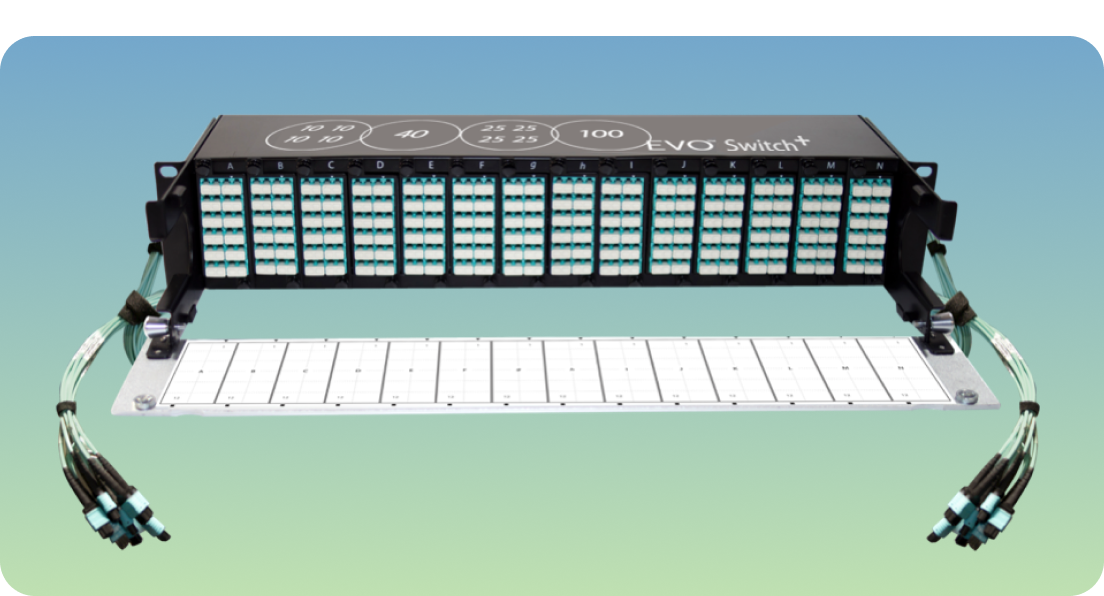

EVO Platform Front View
Gallery Images
Detailed Platform Specifications
Comprehensive technical specifications for both EVO™ and EXO™ platforms, engineered for demanding enterprise and hyperscale environments.
EVO™ High-Density Platform Specifications
| Parameter | Specification |
|---|---|
| Form Factor | 1RU or 2RU modular panels |
| Connectivity Capacity (2RU) | Up to 144 Duplex LC connections |
| Transceiver Support | 48 QSFP-DD or OSFP transceivers |
| Connector Support | MTP-12/16/24 (rear), Duplex LC (front) |
| Fiber Standards | OM4/OM5 Multimode, OS2 Single-Mode |
| Insertion Loss (MM) | Typical <0.55dB |
| Insertion Loss (SM) | Typical <0.75dB |
| Return Loss (APC) | >50dB |
| Return Loss (UPC) | >35dB |
| Operating Temperature | -5°C to +70°C |
Key Performance Highlights
- - Industry-leading 144 duplex LC connections in 2RU
- - Ultra-low insertion loss for optimal signal integrity
- - Hot-swappable modular cassettes for easy maintenance
Compliance & Standards
- - IEC 61754 connector standards compliant
- - TIA/EIA-568 structured cabling standards
- - RoHS and REACH environmental compliance
Engineered for Next-Generation Applications
From AI training clusters to 5G networks, our platforms enable the most demanding connectivity requirements across diverse industry applications.
AI/Machine Learning Infrastructure
EVO™ PlatformThe EVO™ platform provides the clean, structured cabling needed to build and scale massive GPU clusters, ensuring reliable communication for distributed training workloads.
Key Benefits:
- Support for thousands of GPU connections
- Lossless RoCEv2 and InfiniBand fabric support
- Ultra-low latency physical layer
- Modular scaling for growing clusters
Hyperscale Cloud Providers
EVO™ PlatformMaximize revenue per rack with EVO's unmatched termination density. Simplify fiber management and accelerate tenant provisioning with a modular, easy-to-manage system.
Key Benefits:
- Maximum connectivity per square foot
- Rapid tenant provisioning capabilities
- Tool-free installation and maintenance
- Future-proof 400G/800G readiness
5G Networks & Service Providers
EXO™ PlatformUse the EXO™ WDM platform to multiply the capacity of existing fiber backhaul and fronthaul networks, dramatically reducing capital expenditures.
Key Benefits:
- 16x fiber capacity multiplication
- CAPEX reduction for network expansion
- Support for multiple protocols simultaneously
- Passive operation with no power requirements
Data Center Interconnects
EXO™ PlatformDeploy WDM technology to maximize the utilization of existing dark fiber between facilities, supporting multiple protocols and services over the same physical infrastructure.
Key Benefits:
- Dark fiber capacity maximization
- Multi-protocol service support
- Long-distance connectivity optimization
- Cost-effective DCI solutions
Industry Deployments by the Numbers
Proven Signal Integrity for Mission-Critical Applications
Comprehensive performance metrics demonstrating the exceptional quality and reliability of our EVO™ and EXO™ platforms in demanding environments.
EVO™ Platform Performance
Industry-leading low loss for multimode fiber
Exceptional performance for single-mode applications
Superior signal reflection performance
Excellent UPC connector performance
Key Performance Features
- - MTP-12/16/24 and duplex LC connector compatibility
- - Rigorous testing ensures consistent performance
- - Detailed insertion loss measurements provided
EXO™ WDM Performance
Optimal for CWDM wavelength multiplexing
Efficient LAN-WDM performance
High-density DWDM capability
Excellent channel separation
WDM Technology Benefits
- - Passive operation requires no power consumption
- - Protocol agnostic - supports multiple service types
- - ITU grid compliant wavelengths for standardization
Quality Assurance & Testing
100% Tested
Every module undergoes rigorous performance testing before shipping
Traceable Performance
Detailed insertion loss measurements provided for each cassette
Environmental Testing
Validated performance across the full operating temperature range
Simplified Deployment and Operations
Our platforms are designed for operational efficiency, featuring tool-free installation, intelligent cable management, and modular scalability for growing networks.
Tool-Free Installation
Hot-swappable cassettes with push-pull latching mechanisms enable rapid deployment and reconfiguration without specialized tools or network downtime.

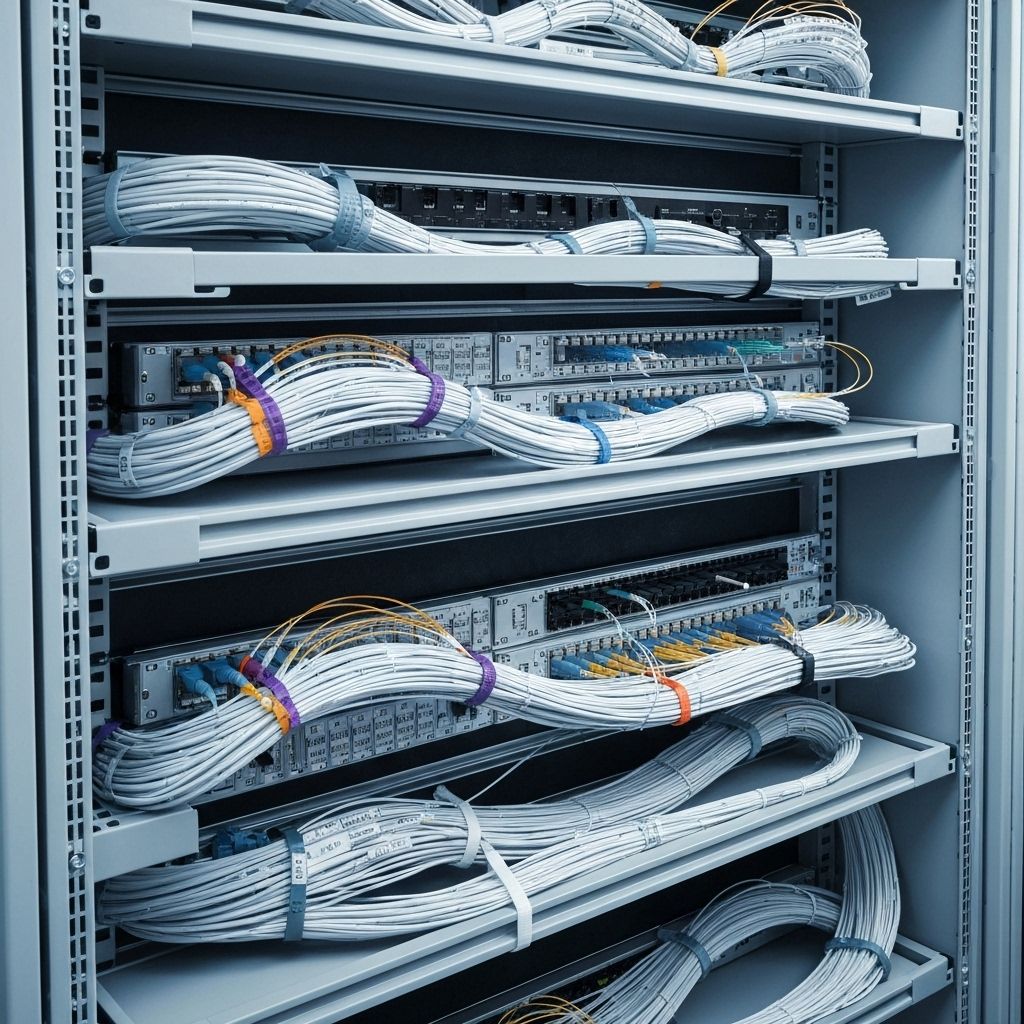

Cable Management Excellence
The 360° rotating wire manager accommodates various cable routing requirements while maintaining proper bend radius protection for high-speed fiber assemblies.
Modular Scalability
Start with the capacity you need today and seamlessly add modules as your network grows, protecting your infrastructure investment while adapting to changing requirements.
Quality Assurance
Each platform undergoes rigorous testing to ensure consistent performance across all modules, with detailed insertion loss measurements provided for every cassette.
Minutes
Average cassette replacement time with no network disruption
Tools Required
Complete installation and maintenance without specialized equipment
Cable Management
Rotating wire manager accommodates any cable routing requirement
Ready to Transform Your Infrastructure?
Get detailed technical specifications, pricing, and deployment guidance from our infrastructure experts.
