Ethernet Solutions – Copper Cabling Built for Performance
Custom Cat6A, Cat8, and structured cabling solutions for 1G to 100G networks. Factory-tested, pre-labeled, deployment-ready.
Premium Features Available
Premium features on our RJ45 cables include super slim line, premium snagless connectors, custom colors and custom bundles.
Super Slim Line
50% thinner for high-density racks

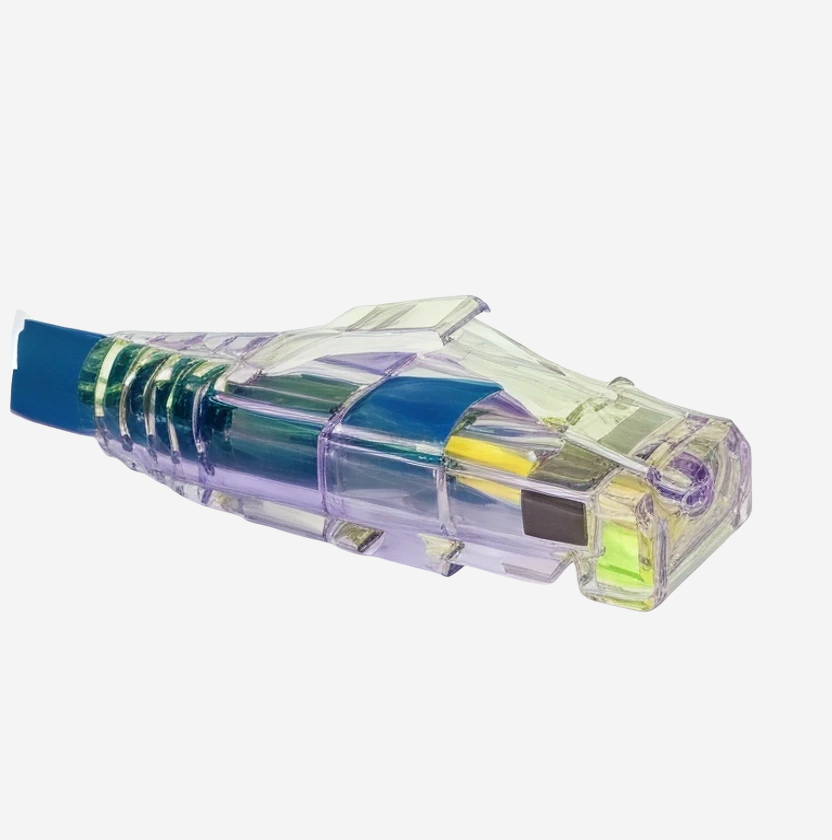

Snagless Connectors
Gold-plated contacts for reliability
Custom Colors
10 jacket colors for organization

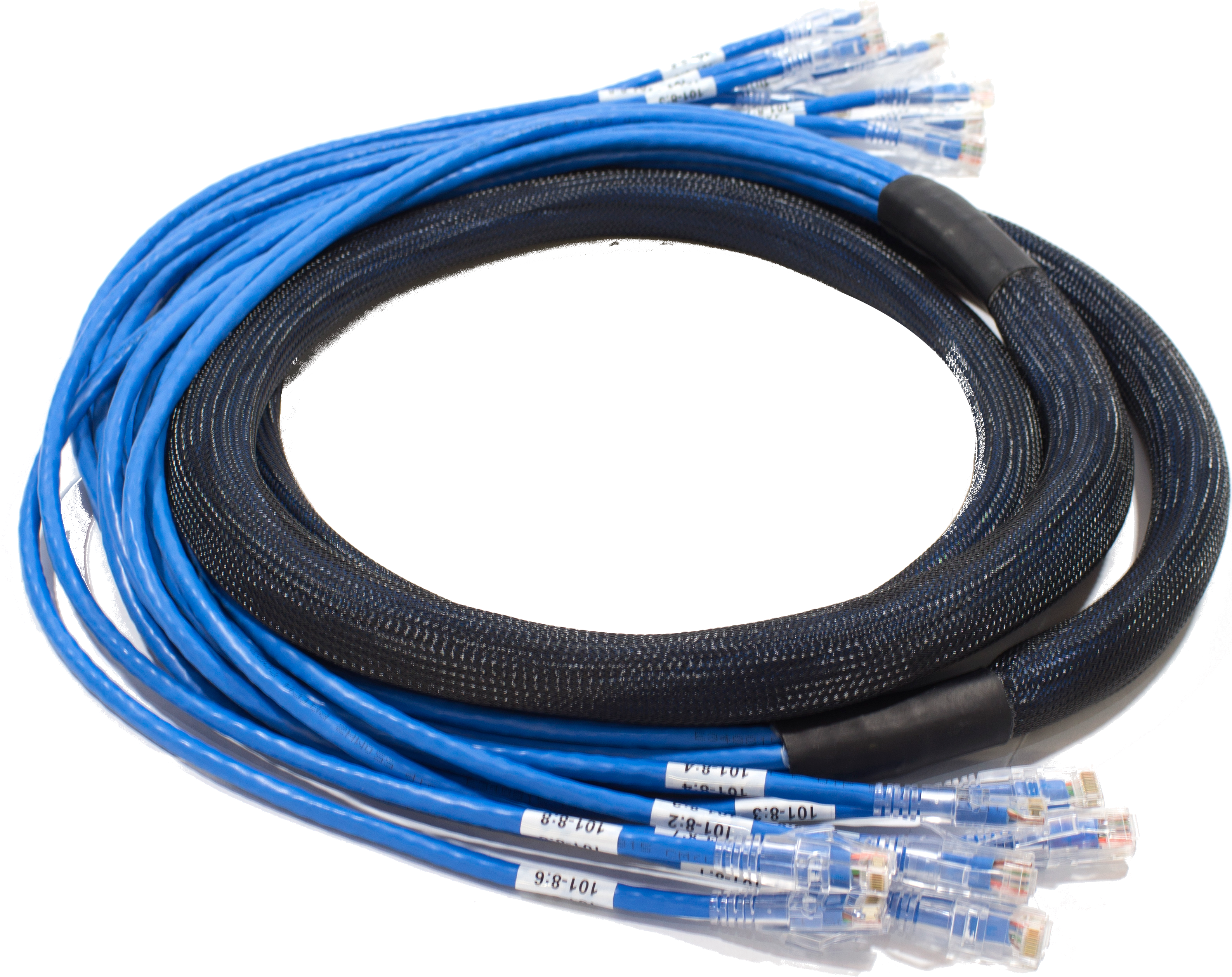

Custom Bundles
Pre-kitted for faster deployment
Cat5e Copper Patch Cord
Reliable Cat5e patch cords designed for Gigabit Ethernet networks. These cost-effective cables deliver 1 Gbps performance over 100 meters and are ideal for home networks, small offices, and basic internet connectivity applications. Available in both UTP and STP configurations.
Key Features
- 1 Gbps transmission speed up to 100 meters
- 100 MHz bandwidth performance
- Available in UTP and STP configurations
- Cost-effective solution for basic networking
- Snagless molded boots for easy installation
- 100% continuity tested
Applications
- Home networks and residential installations
- Small office connectivity
- Basic internet usage
- Voice over IP (VoIP) systems
- Desktop to switch connections
Cat6 Copper Patch Cord
High-performance Cat6 patch cords built with 24AWG stranded copper for reliable Gigabit Ethernet connectivity. Supports 1 Gbps at 100 meters and 10 Gbps at shorter distances up to 55 meters. Perfect for high-speed networks, gaming setups, and enterprise environments.
Key Features
- 1 Gbps at 100m / 10 Gbps at 55m
- 250 MHz bandwidth
- Available in UTP and STP configurations
- 24AWG stranded bare copper conductors
- TIA-568-C.2 compliant
- Gold-plated RJ45 contacts
Applications
- Gigabit Ethernet networks
- High-speed LAN environments
- Gaming and streaming setups
- Enterprise office networks
- Short-distance 10G applications
Cat6A Copper Patch Cord
Professional-grade Cat6A patch cords designed for 10GBASE-T Ethernet networks. Featuring 26AWG stranded copper with SSTP dual-shielding for superior performance and EMI protection in demanding data center environments. Full 10 Gbps performance over the entire 100-meter distance.
Key Features
- 10GBASE-T up to 100 meters
- 500 MHz bandwidth
- 26AWG stranded copper construction
- SSTP dual-shielding for maximum EMI protection
- PoE++ (IEEE 802.3bt) support
- Available in 10 jacket colors
Applications
- 10GBASE-T Ethernet networks
- Data center server connections
- High-speed storage networks
- Enterprise backbone cabling
- High-density rack installations
Cat7 Copper Patch Cord
Heavy-duty Cat7 patch cords with S/FTP (fully shielded) construction for maximum EMI protection. Designed for industrial applications and shielded enterprise networks requiring 10 Gbps performance with superior noise immunity. 600 MHz bandwidth provides excellent headroom for future applications.
Key Features
- 10 Gbps transmission speed
- 600 MHz bandwidth
- S/FTP fully shielded construction
- 100 meters maximum distance
- Maximum EMI and crosstalk protection
- Ruggedized for harsh environments
Applications
- Industrial control systems
- High-EMI environments
- Shielded enterprise networks
- Manufacturing facilities
- Mission-critical networks requiring maximum reliability
Cat8 Copper Patch Cord
Next-generation Cat8 patch cords delivering 25G/40G performance over copper. Optimized for data center Top-of-Rack applications with S/FTP shielding and 2000 MHz bandwidth. Maximum distance of 30 meters makes these ideal for short-reach, high-speed connections in AI/HPC clusters.
Key Features
- 25G/40GBASE-T applications
- 2000 MHz bandwidth
- S/FTP shielded construction (required)
- Maximum length 30 meters
- Low latency for AI/HPC clusters
- Future-proof copper solution
Applications
- Data center Top-of-Rack (ToR) connections
- AI and machine learning clusters
- High-performance computing (HPC)
- Server-to-switch connections
- Next-generation data center infrastructure
Super Slim Cat6A Patch Cord
Ultra-slim 28AWG Cat6A patch cord delivering full 10GBASE-T performance in a compact design. Reduces cable volume by over 50% compared to standard Cat6A, ideal for high-density data centers and improved airflow management.
Key Features
- 50%+ thinner than standard Cat6A cables (3.8mm diameter)
- 28AWG stranded UTP copper for maximum flexibility
- Tight bend radius enhances cable routing and airflow
- Full Cat6A 500 MHz performance (ANSI/TIA-568-C.2)
- Recommended for runs up to 10 meters
- 100% factory-tested for continuity and wire map
Applications
- High-density data center I/O consolidation
- Top-of-Rack (ToR) switch connections
- Server virtualization and cloud environments
- High-density patch panels and network racks
- Environments requiring improved airflow

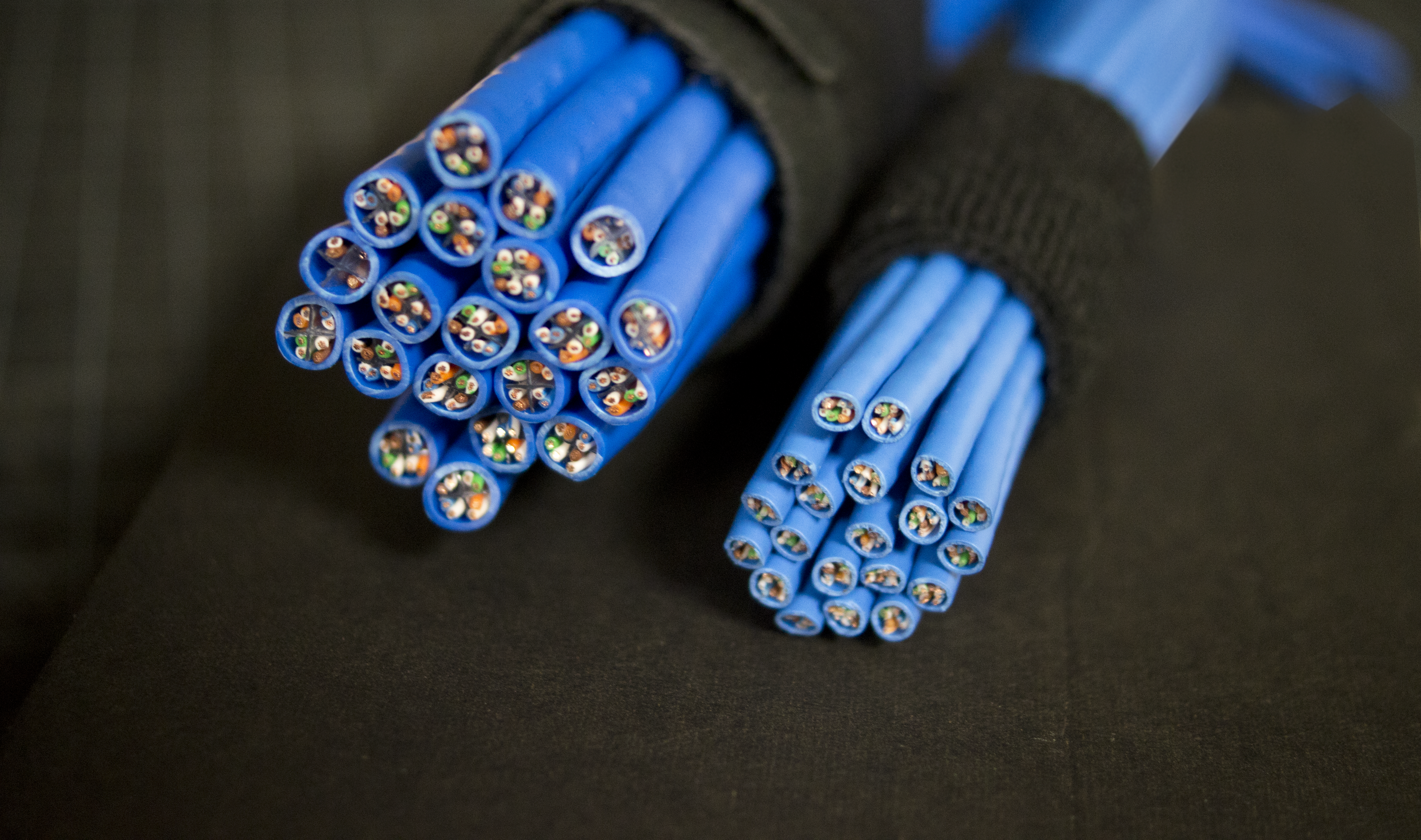

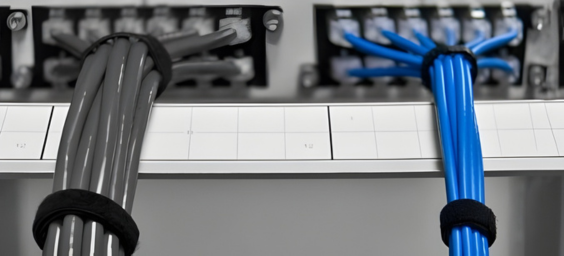

Visual Comparison: Super Slim vs Standard Cat6A
Ethernet Cable Comparison
| Feature | Cat5e | Cat6 | Cat6A | Cat7 | Cat8 |
|---|---|---|---|---|---|
| Max Bandwidth | 100 MHz | 250 MHz | 500 MHz | 600 MHz | 2000 MHz |
| Max Speed | 1 Gbps | 1 Gbps (100m) 10 Gbps (55m) | 10 Gbps | 10 Gbps | 25/40 Gbps |
| Max Distance | 100 meters | 100 meters (1G) 55 meters (10G) | 100 meters | 100 meters | 30 meters |
| Shielding | UTP or STP | UTP or STP | UTP or F/UTP | S/FTP (required) | S/FTP (required) |
| Best Use Case | Home networks, basic office | Gigabit networks, gaming | Enterprise 10G, PoE++ | Industrial, shielded environments | Data center ToR, AI clusters |
| Relative Cost | Lowest | Low | Moderate | Higher | Highest |
PoE++ Power Cables
- • IEEE 802.3bt 100W delivery
- • Cat6A shielded for heat dissipation
- • Power over Ethernet to devices
- • Wi-Fi 6/6E AP support
- • IP cameras, LED lighting, IoT
- • Certified for PoE applications
PoE Standards Supported
Structured Cabling Systems
- • Permanent link infrastructure
- • Cat6A/Cat8 solid conductor cable
- • Keystone jacks and wall plates
- • Cable management systems
- • TIA-568 channel certification
- • 25-year warranty options
Modular RJ45 cassette systems for flexible copper patching and easy moves/adds/changes.
Learn more →Key Benefits:
- • Scalable infrastructure design
- • Simplified moves, adds, changes
- • Reduced installation time
- • Enhanced network reliability
- • Future-proof architecture
- • Professional certification
Quality & Testing Standards
Cat6A/Cat8 Testing:
- • Fluke DTX/DSX channel certification
- • TDR (Time Domain Reflectometry)
- • Alien crosstalk (AXT) testing
- • Return loss verification
- • PoE resistance measurement
Quality Assurance:
- • 100% continuity testing
- • Wire map verification
- • Performance certification
- • Connector retention testing
- • Temperature cycling validation
All Wave2Wave Ethernet products ship with test reports and lifetime warranty against manufacturing defects.
Need Custom Ethernet Cabling?
Contact us to discuss your copper infrastructure requirements and receive a custom quote.
