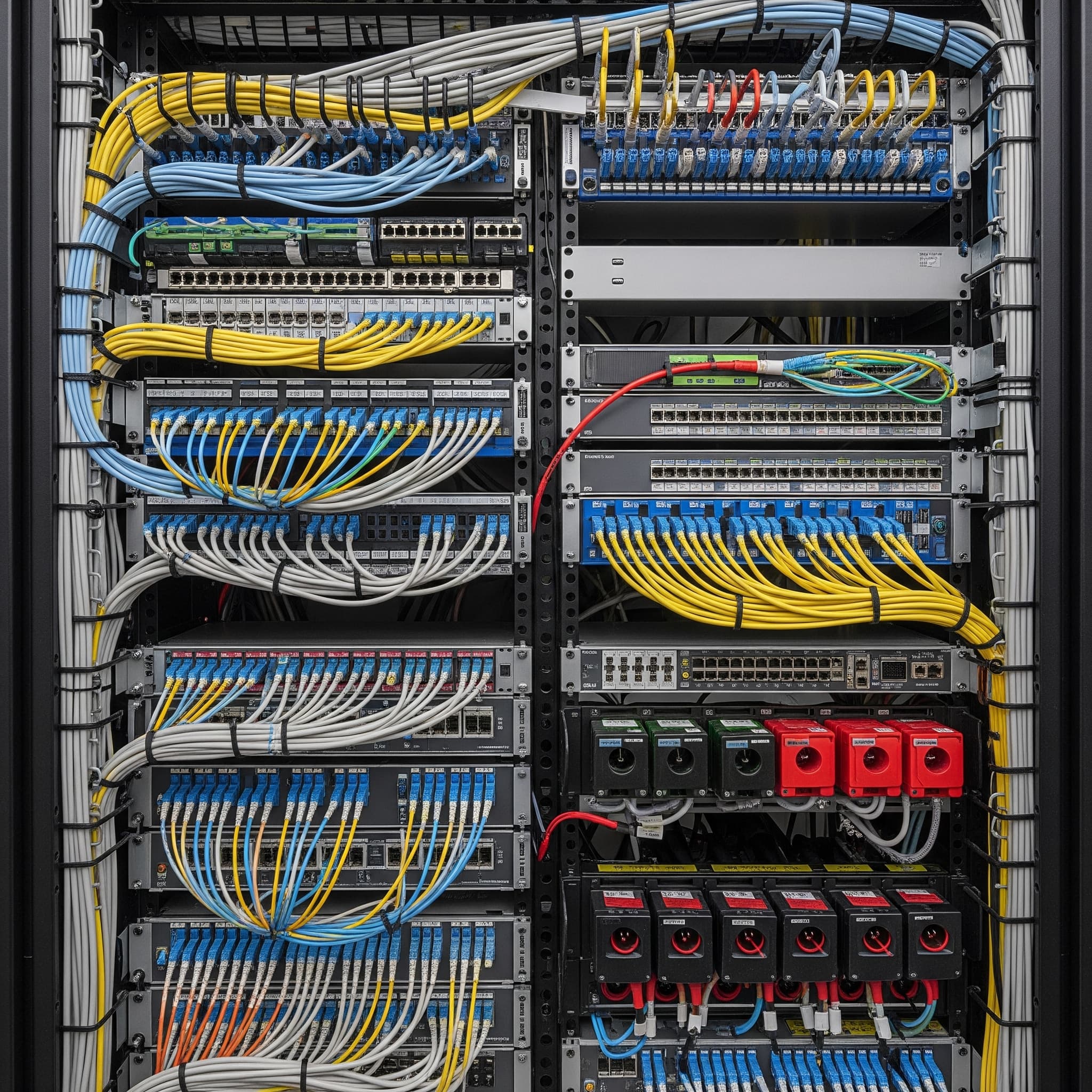

The Complete Guide to Data Center Structured Cabling

Fiber Optic Systems: Technology and Products

Fiber optics enable high-speed data transmission with minimal signal loss. Data centers use both multi-mode and single-mode fiber:

• Multi-mode (OM3, OM4, OM5): Ideal for short-distance, high-speed links (up to 400G in some cases). Lower cost transceivers.
• Single-mode (OS2): Supports long-distance transmission (up to 40 km and beyond). Required for DWDM and high-density spine-leaf fabrics.

Fiber Products Include:

• Pre-terminated trunk cables (MTP/MPO)
• Fanout/breakout cables (MTP to LC)
• Fiber cassettes and patch panels
• Rack-mounted fiber enclosures
• Optical transceivers (SFP+, QSFP28, QSFP-DD, OSFP)
• Test and inspection tools (OTDR, power meters, fiber scopes)

Ethernet Infrastructure: Technology and Products

Ethernet still plays a critical role in modern networks—particularly within the rack:

• Cat6A: 10Gbps up to 100m; shielded or unshielded
• Cat8: 25Gbps and 40Gbps up to 30m; ideal for short top-of-rack links
• Modular patch panels: Easy reconfiguration
• Field-terminated plugs: Flexible for custom lengths
• Color-coded patch cords: Simplifies troubleshooting and change management

Deployment Logistics: Kitting, Labeling, and Efficiency

One of the most overlooked but impactful factors in structured cabling is how your components arrive at the job site. Efficient deployment reduces installation time, labor costs, and human error.

Why Kitting Matters

• Receive all components per rack rather than by type
• Eliminate time spent sorting through mixed hardware
• Each box labeled with rack ID, U position, server/device type
• Include installation map, labeling guide, and port diagram

Best Practices

• Use color-coded cables (e.g., blue for Ethernet, yellow for SM fiber, aqua for MM fiber)
• Use pre-printed port labels and cable flags
• Include slack management and cable support accessories
• Deliver cassettes and trunks pre-labeled and polarity verified
