What fiber types do you support?

OM3, OM4, OM5 multimode and OS2 singlemode. All available in custom lengths with LC, SC, and MPO/MTP connectors.

Do you make custom fiber lengths?

Yes, in 3-inch increments. Tell us your rack geometry; we engineer to the exact slack required, no wasted cable.

What's the difference between OM3, OM4, OM5, and OS2?

OM3/OM4/OM5 are multimode (short reach, 100-550m). OS2 is singlemode (long reach, kilometers). OM5 adds WDM. OS2 is the AI/HPC default.

Do you factory-test fiber cables?

Every cable. We provide IL/RL certification per fiber with the shipment, including OTDR traces on long runs.

What connectors are available?

LC, SC, MPO/MTP-12/24/32, and CS. Polish: UPC standard; APC for parallel singlemode (DR/PSM/SR8.2 BiDi).

// fiber

Fiber Optic Cables

Custom fiber assemblies engineered for performance, from high-density MPO trunks to precision patch cords. Factory-tested, pre-labeled, and ready to deploy in AI clusters, hyperscale data centers, and enterprise…

Request a quote →Get in touch

// deployed at

// fiber-mpo-trunks

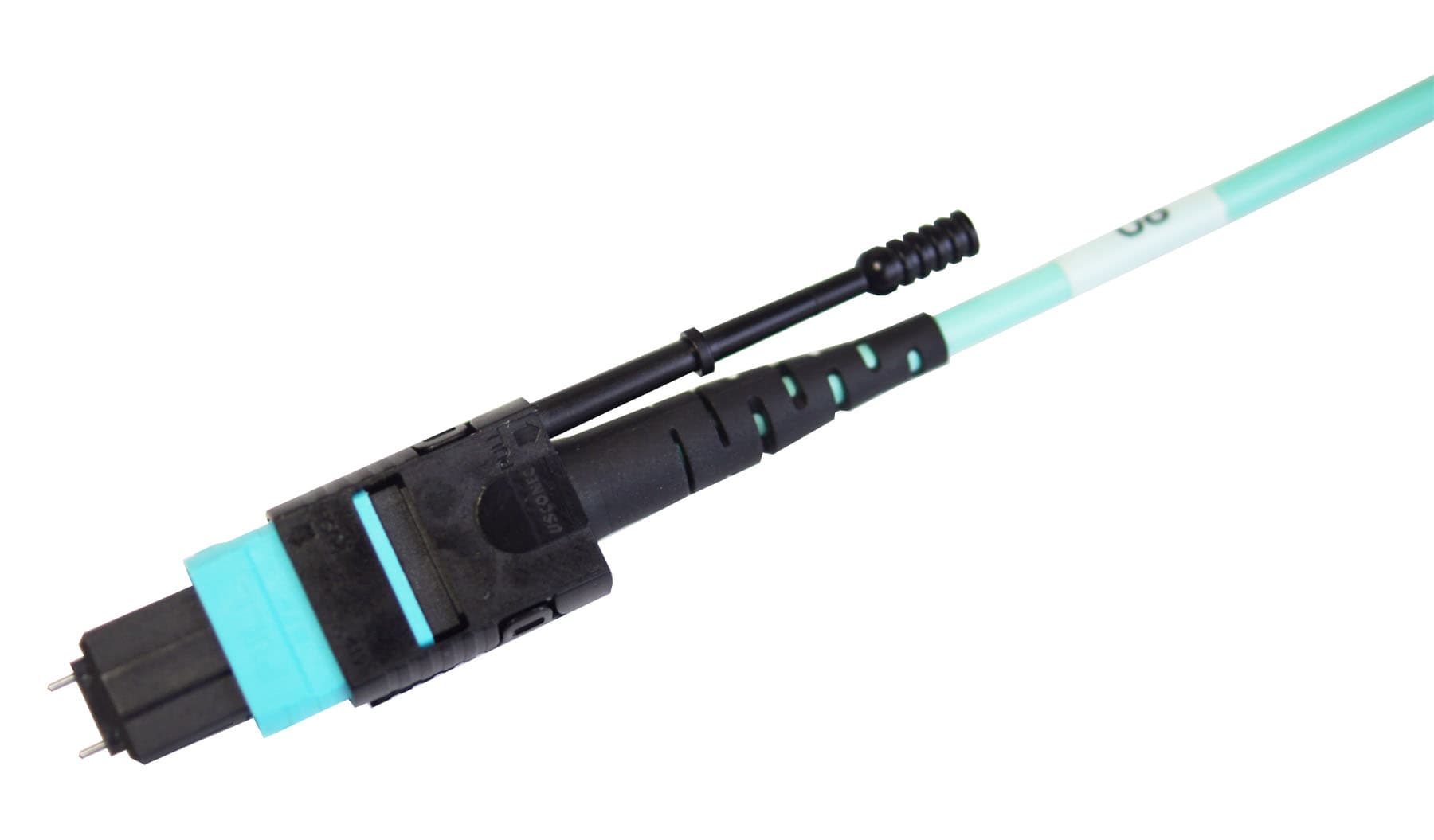

MPO/MTP Trunk & Patch Cables

8F / 12F / 16F / 24F / 32F / 48F · OS2 / OM3 / OM4 / OM5

// fiber-lc-patch-cords

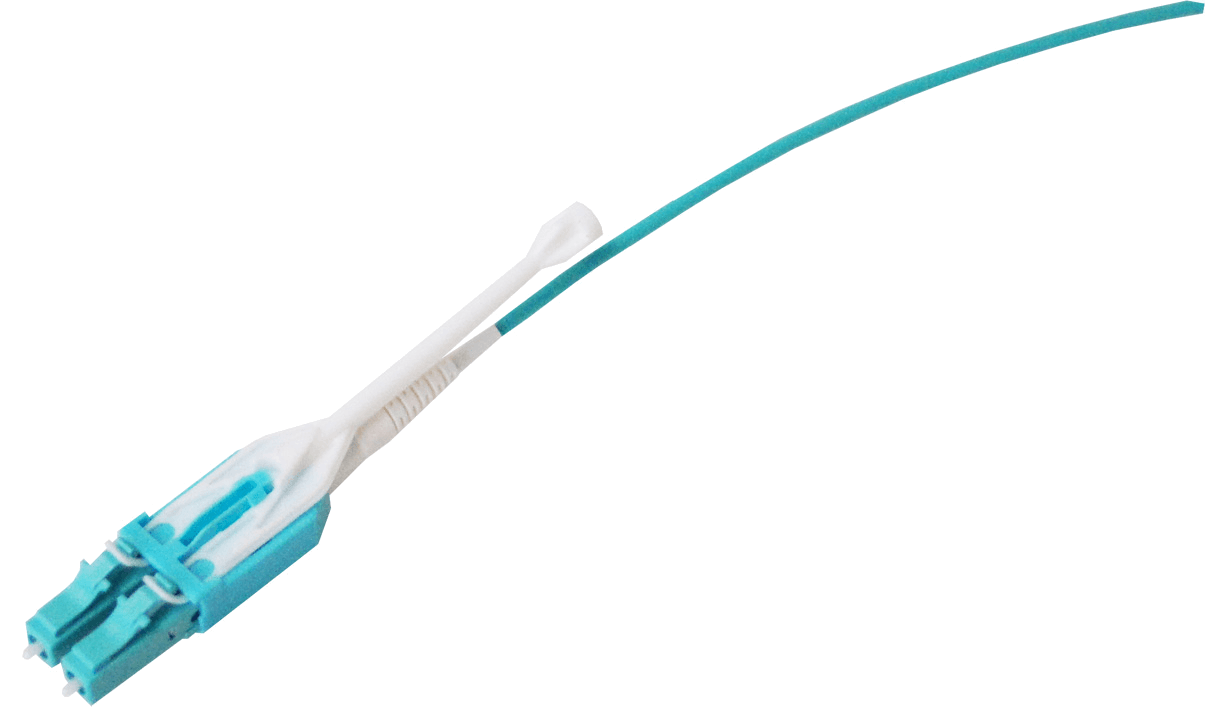

LC Patch Cords

Duplex / Uniboot / Simplex · OS2 / OM3 / OM4 / OM5

// fiber-mpo-breakouts

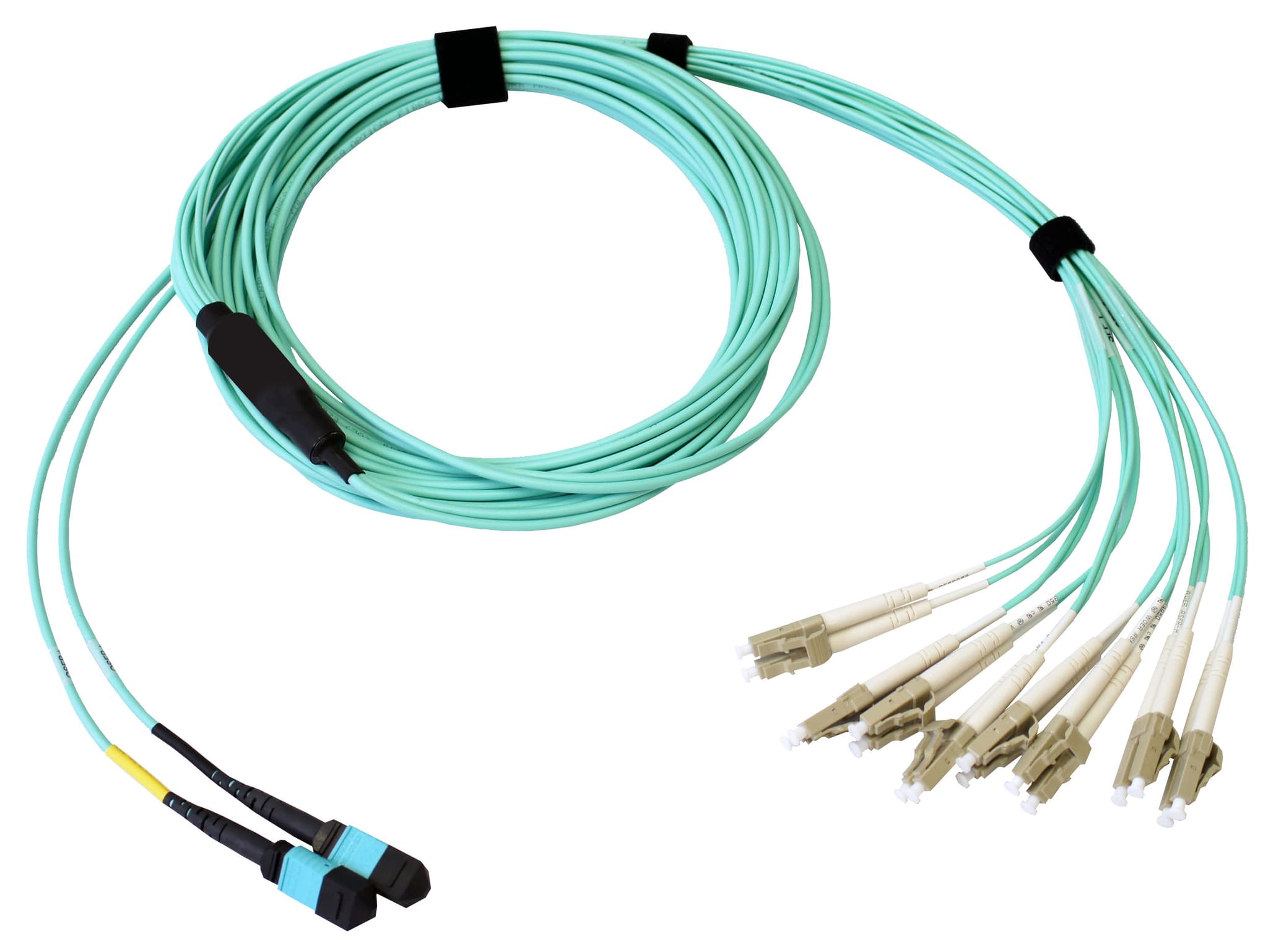

MPO Breakouts

MPO to LC / SN / CS · 2 / 4 / 6 / 8 / 12 legs

// fiber-specialty-patch-cords

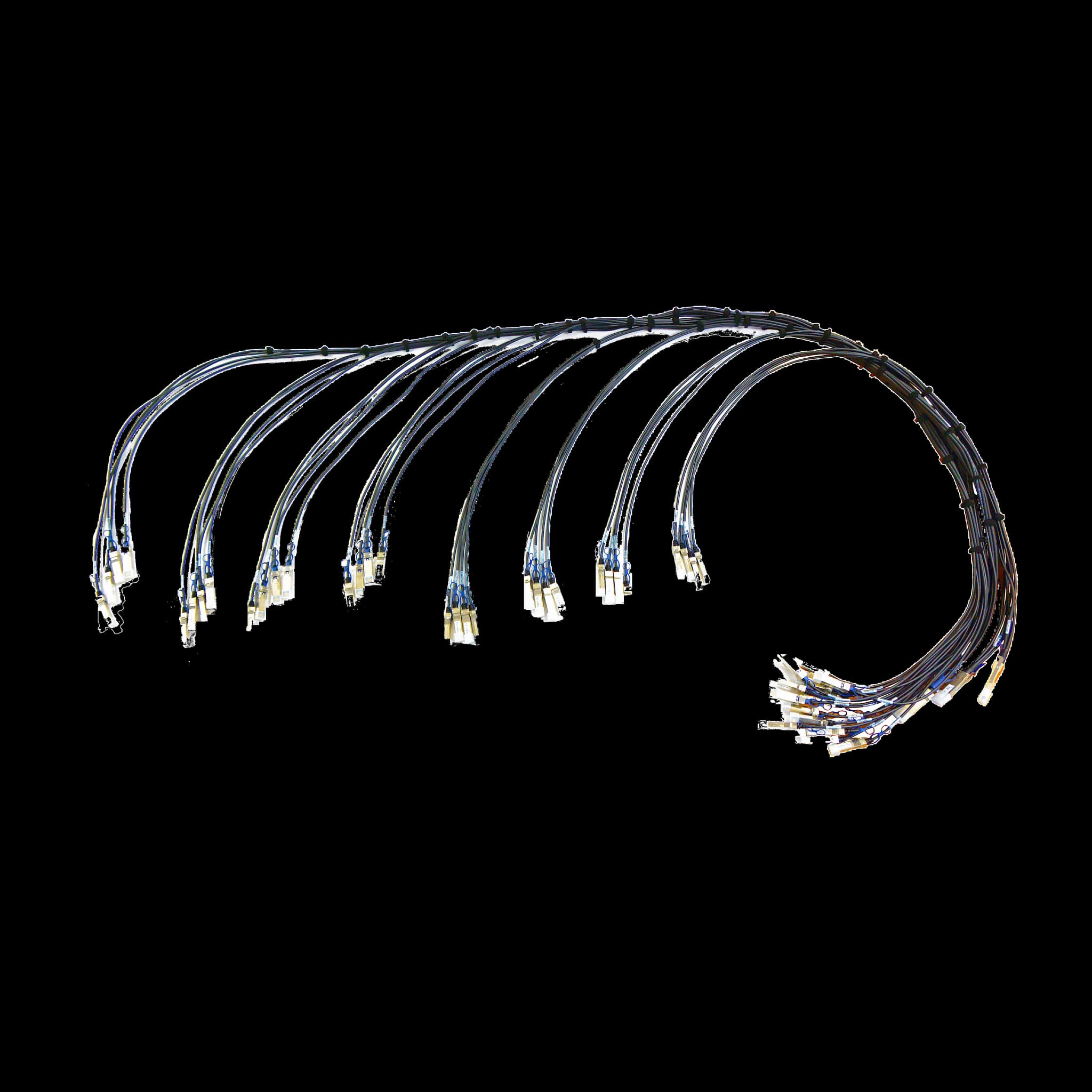

Specialty & Custom Cables

SN · CS · MDC · MPO Mini · Hybrid

// fiber-high-fiber-count-trunks

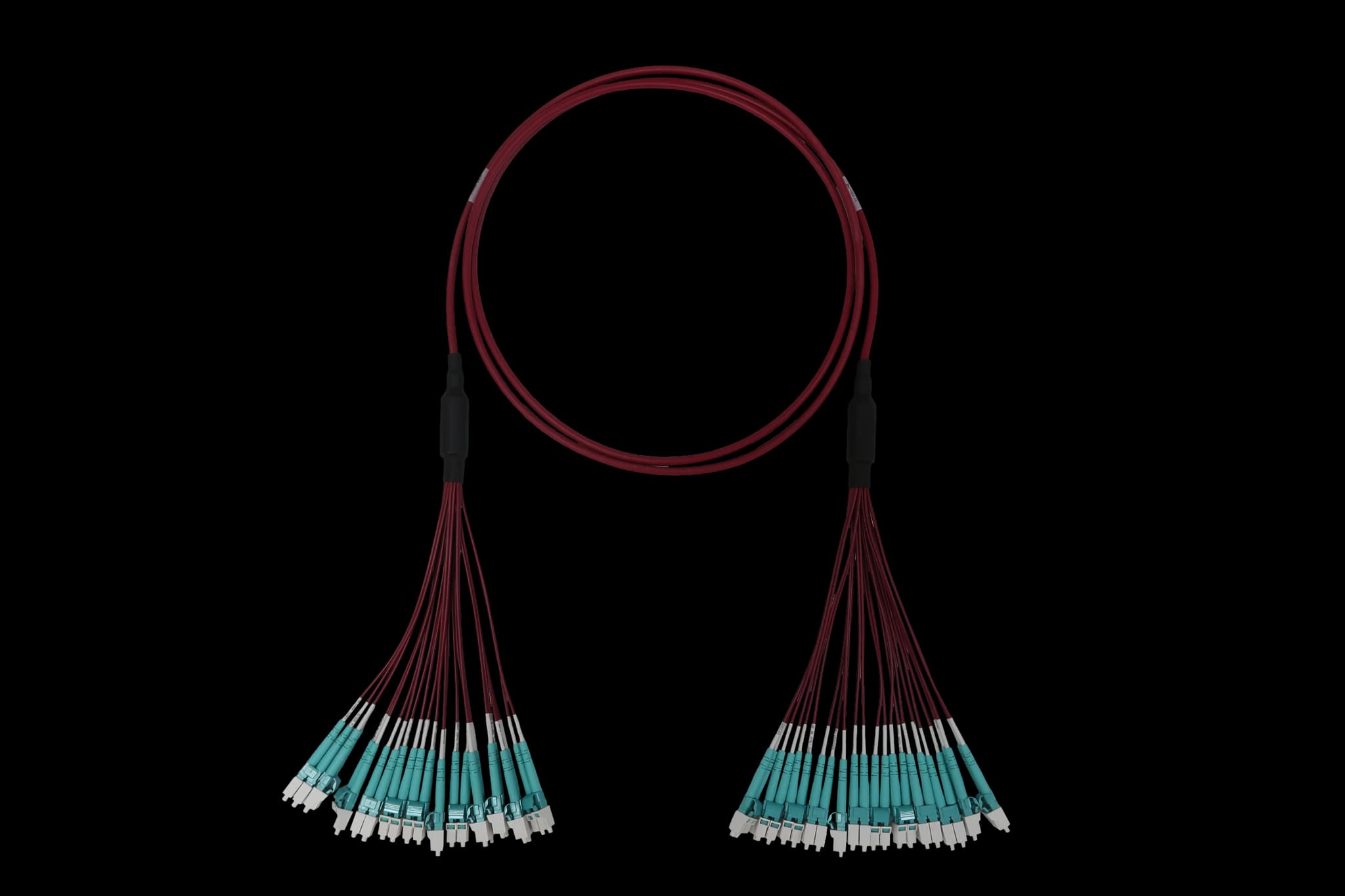

High-Fiber-Count Trunks

24F to 3456F · OSP / Ribbon / Microduct

// fiber-splice-on-pigtails

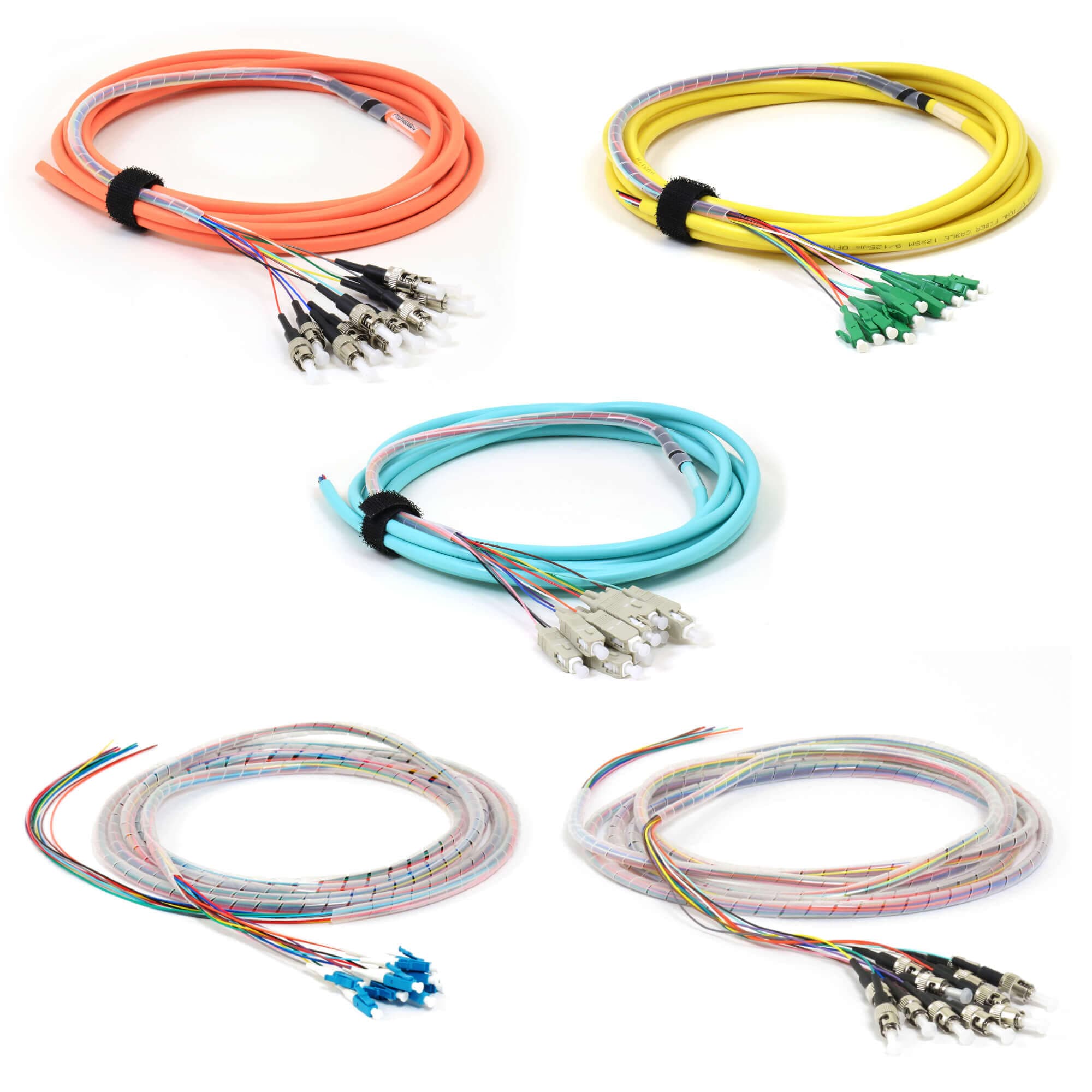

Splice-on Pigtails

LC / SC / ST / MPO / FC · TIA-598 color sets

// fiber-adapters-modules

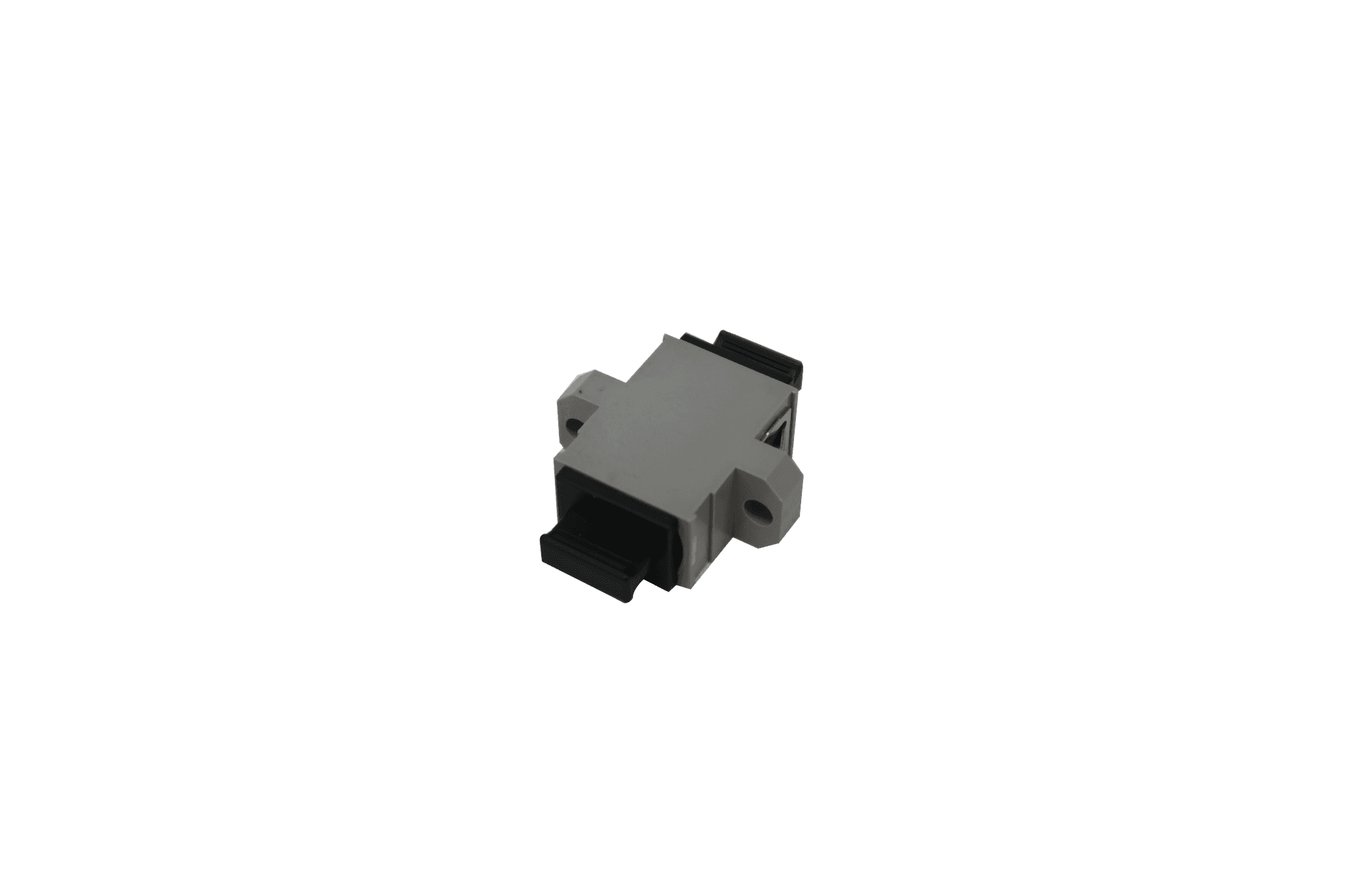

Adapters

MPO-LC cassettes · Polarity / gender adapters · Loopbacks

// fiber-attenuators

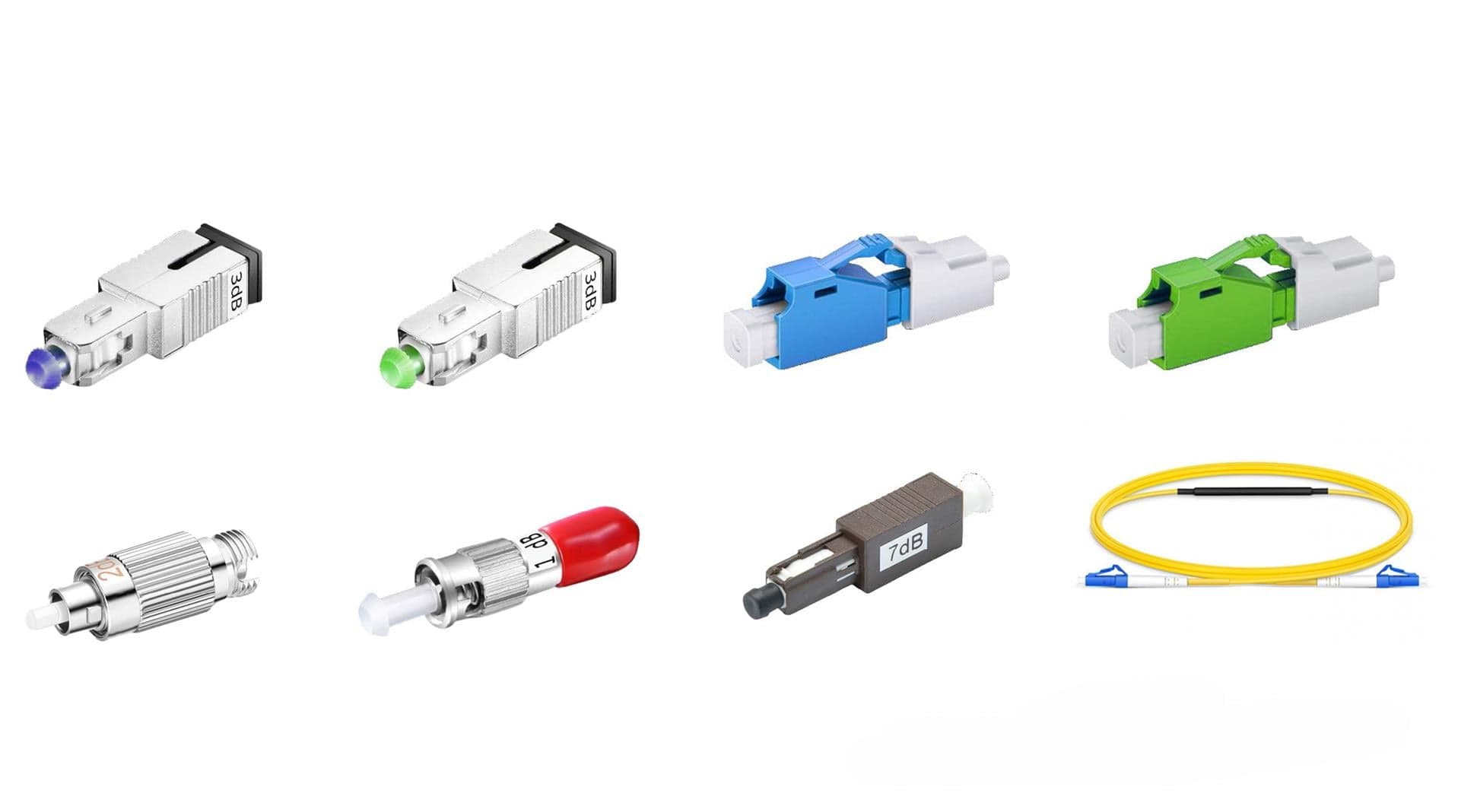

Optical Attenuators

// fiber_type_choice

OM3 vs OM4 vs OM5 vs OS2 — pick the right fiber

Multimode vs singlemode is the first decision. Within multimode, OM4 is the workhorse and OM5 adds SWDM. OS2 is the AI/HPC default for anything beyond a single rack row.

Spec	OM3 Multimode	OM4 Multimode	OM5 Multimode + SWDM	OS2 Singlemode
Color jacket (standard)	Aqua	Aqua / violet	Lime green	Yellow
Core diameter	50 µm	50 µm	50 µm	9 µm
Modal bandwidth @ 850 nm	2,000 MHz·km	4,700 MHz·km	4,700 MHz·km (plus WDM)	n/a (singlemode)
Reach at 10G	300 m	550 m	550 m	10 km+
Reach at 40G / 100G (parallel)	100 m	150 m	150 m	10 km+ (LR4 / FR4)
Reach at 400G (DR4 / SR8)	70 m	100 m	100 m	500 m – 10 km
Reach at 800G (SR8 / DR8)	≤50 m	100 m	100 m	500 m – 10 km
SWDM / WDM support	No	No (BiDi only)	Yes — 4-λ SWDM ×100G	Yes — DWDM / CWDM long-haul
AI fabric fit	Legacy 10G/40G access	Standard 100G/400G AI cluster	Premium 400G/800G WDM clusters	DCI, campus, long-reach AI backbone
Cost per meter (relative)	Lowest multimode	+15-20% vs OM3	+30-40% vs OM4	Lowest at scale (long reach)
Connector polish	UPC standard	UPC standard	UPC standard	UPC + APC (APC for parallel SM)
Best for	Legacy access where reach < 300 m at 10G	Workhorse AI cluster fabric	Premium AI fabric with WDM upgrade path	DCI, long-reach AI backbone, AI/HPC default

Reach values reflect IEEE 802.3 nominal limits assuming standard insertion loss. Custom lengths in 3-inch increments across all fiber types; IL/RL certification per fiber ships with every order.

// frequently_asked

Frequently asked questions.

What fiber types do you support?: OM3, OM4, OM5 multimode and OS2 singlemode. All available in custom lengths with LC, SC, and MPO/MTP connectors.
Do you make custom fiber lengths?: Yes, in 3-inch increments. Tell us your rack geometry; we engineer to the exact slack required, no wasted cable.
What's the difference between OM3, OM4, OM5, and OS2?: OM3/OM4/OM5 are multimode (short reach, 100-550m). OS2 is singlemode (long reach, kilometers). OM5 adds WDM. OS2 is the AI/HPC default.
Do you factory-test fiber cables?: Every cable. We provide IL/RL certification per fiber with the shipment, including OTDR traces on long runs.
What connectors are available?: LC, SC, MPO/MTP-12/24/32, and CS. Polish: UPC standard; APC for parallel singlemode (DR/PSM/SR8.2 BiDi).
