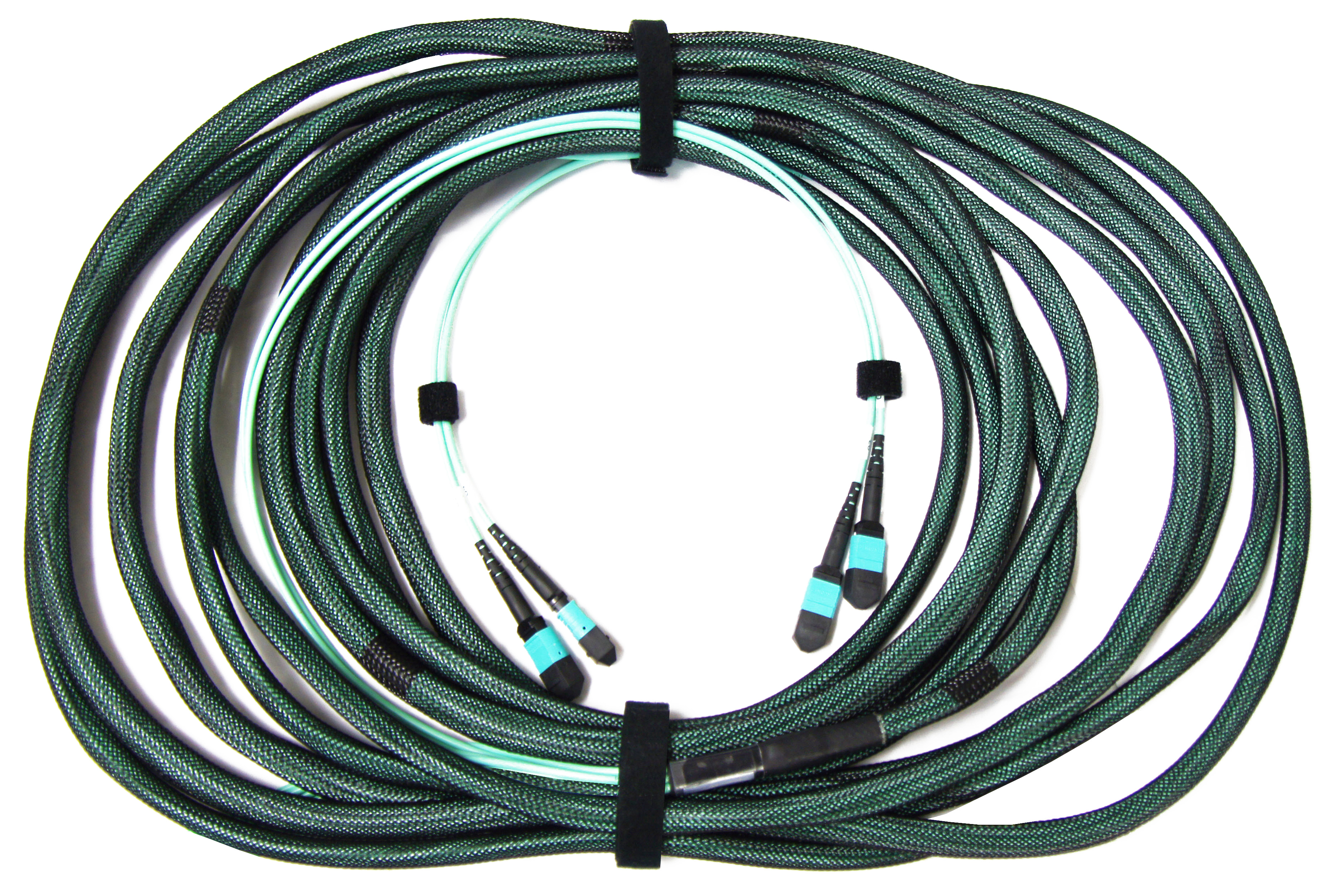

High-density MPO/MTP trunk cables for the spine fabric of 100G, 400G, and 800G AI clusters. 12F, 24F, 32F connectors; OM4, OM5, OS2 fiber types. Custom lengths and end-cap configurations.
Custom built to order
TIA-568IEC 61755IL/RL per fiber
High-density MPO/MTP trunk cables for the spine fabric of 100G, 400G, and 800G AI clusters. 12F, 24F, 32F connectors; OM4, OM5, OS2 fiber types. Custom lengths and end-cap configurations.
12F, 24F, 32F MPO/MTP connector counts
OM4 / OM5 / OS2 fiber types
Custom lengths in 3-inch increments
MTP Elite Pro option for lower IL on long trunks
Polarity types A, B, C supported on order
Minimum order
1
Status
Custom built to order
Fiber Type Legend
Type
Mode
Best Use
Max Distance (10G)
Standard Jacket Color
OS2
Singlemode
Long-haul / Outdoor
200 km
Yellow
OM3
Multimode
Data Centers / LAN
300 m
Aqua
OM4
Multimode
High-speed backbone
400 m
Aqua / Magenta
OM5
Multimode
SWDM / Future-proof
440 m
Green
Side A
Side B
Type A: straight-through. Type B: crossed (rolled). Type C: pair-flipped.
