Optical Transceivers
& Optics
Next-generation optical transceivers from 1G to 800G for AI/HPC clusters, hyperscale data centers, and enterprise networks. Hot-pluggable, MSA-compliant modules supporting SR, DR, LR, and ER optics.
SR • DR • LR • ER Optics
Optical Transceiver Modules
High-quality optical transceivers engineered for reliability, performance, and compatibility across all major networking platforms.

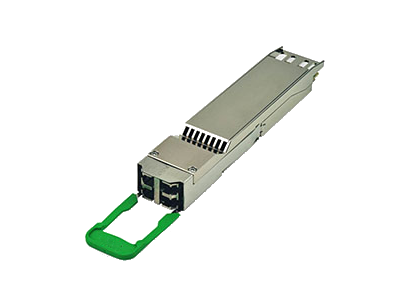

800G OSFP Transceiver
Ultra-high-density 800G transceiver module featuring advanced optical technology for AI/HPC clusters and next-generation data center fabrics. Hot-pluggable OSFP design with comprehensive digital diagnostics monitoring.
Technical Capabilities
MSA Compliant
Industry-standard form factors ensuring universal compatibility
Hot-Pluggable
Install and remove without powering down equipment
DDM Enabled
Real-time diagnostics monitoring for proactive maintenance
800G OSFP Transceivers
Ultra-high-density 800 Gigabit optical modules for AI/ML clusters, GPU interconnects, and next-generation data center fabrics. OSFP (Octal Small Form Factor Pluggable) form factor with advanced thermal management.

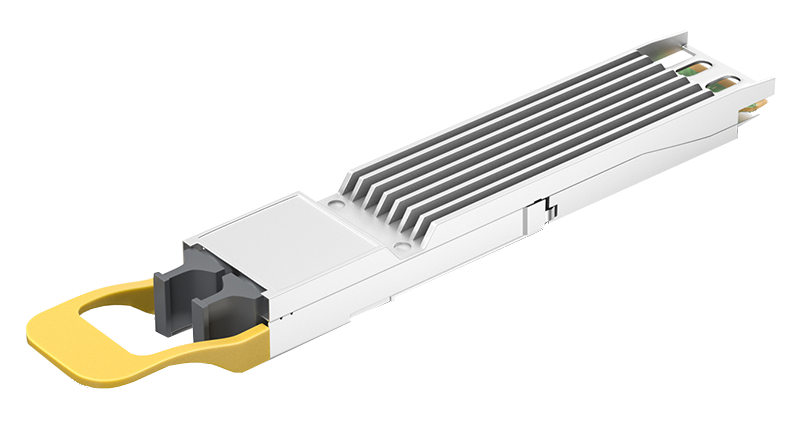

800G OSFP DR8
500m SMF, 8×100G PAM4
- 800 Gbps aggregate (8×106.25G)
- 1310nm 8-lane DR8 optics
- 500m on SMF (G.652)
- Dual MPO-16 APC connectors
- IEEE 802.3ck, OIF CEI-112G
800G OSFP 2×400G DR4
Breakout mode, 500m SMF
- 2×400G breakout configuration
- 1310nm DR4 per port
- 500m reach per 400G lane
- Dual MPO-12 APC connectors
- Port flexibility, lower power
800G OSFP SR8
100m MMF, AI cluster optimized
- 800 Gbps short-reach
- 850nm VCSEL array
- 100m on OM4, 150m on OM5
- MPO-16 multimode connector
- GPU-to-GPU, spine-leaf fabric

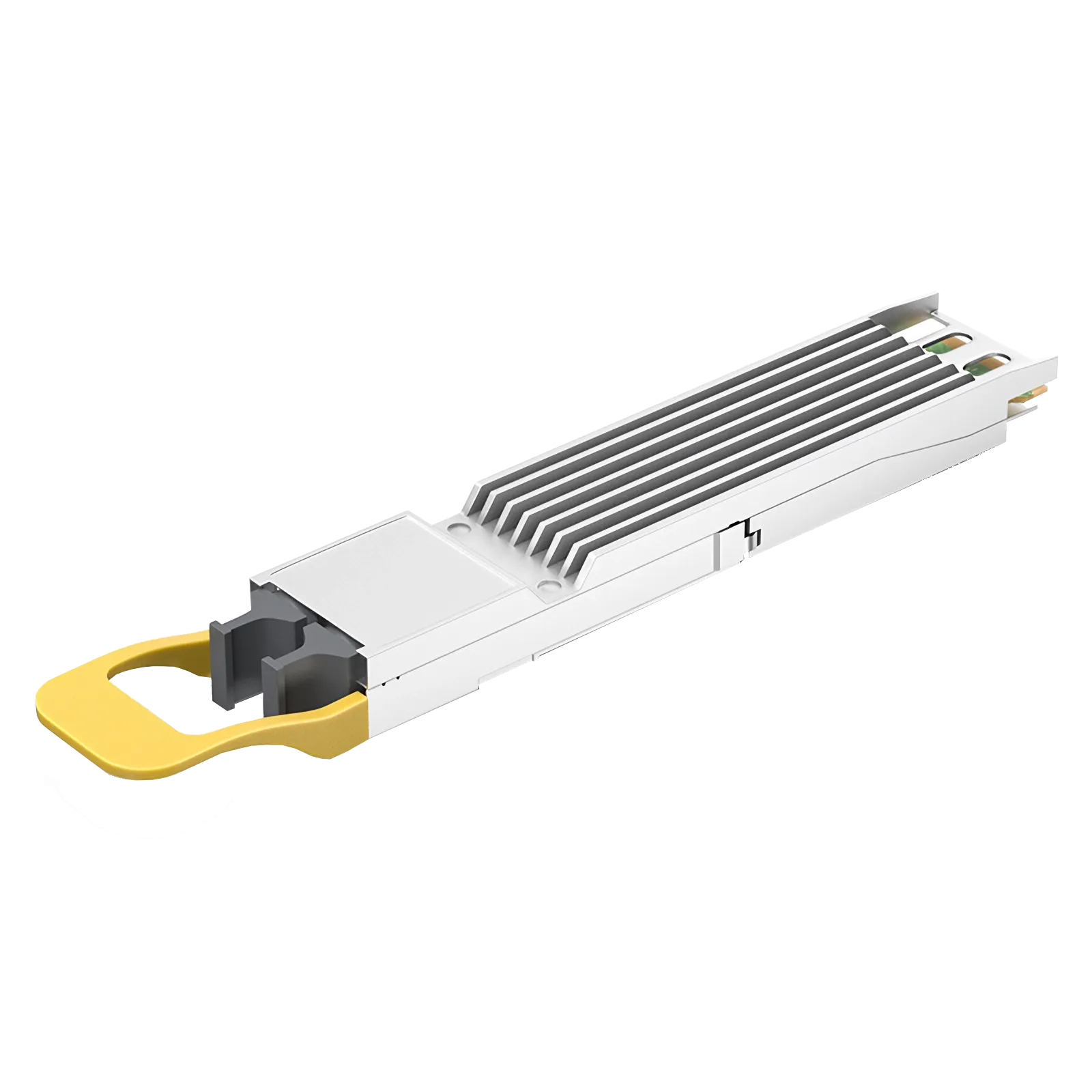

OSFP Thermal Management
OSFP transceivers feature advanced thermal design with integrated heat sinks (finned), closed-top variants for airflow optimization, and <15W power consumption per module. Ideal for high-density AI/HPC deployments requiring 800G bandwidth per port.

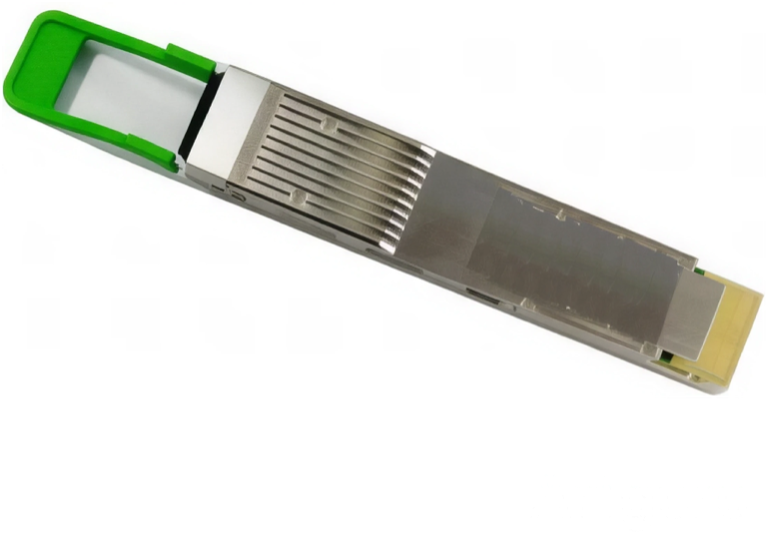

400G Transceivers
Mainstream 400 Gigabit optical modules in QSFP-DD or QSFP112 form factors. QSFP-DD offers backward-compatibility with QSFP+ and QSFP28, while QSFP112 provides next-generation compact design for flexible deployment in data center spine-leaf architectures.
400G 2×200G FR4
Port density optimization, 2km SMF
- 2×200G breakout mode, 4×50G PAM4 per port
- 2km reach per 200G lane on SMF
- Dual LC or MPO-8 connectors
400G 4×100G PSM4
Legacy compatibility, 500m SMF
- 4×100G breakout to existing 100G infrastructure
- 500m on SMF, MPO-12 connector
- Migration path from 100G to 400G

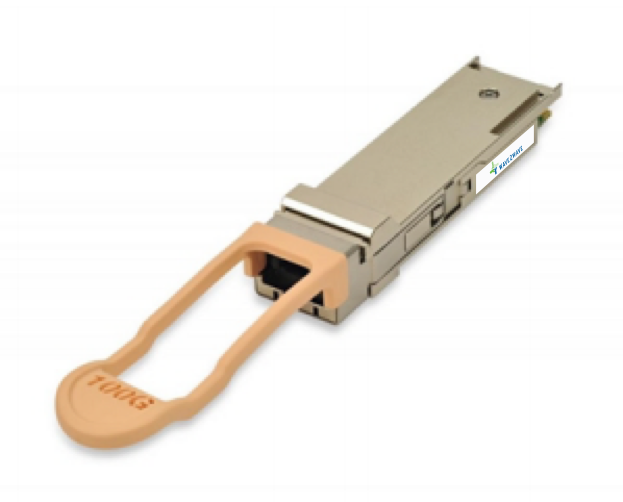

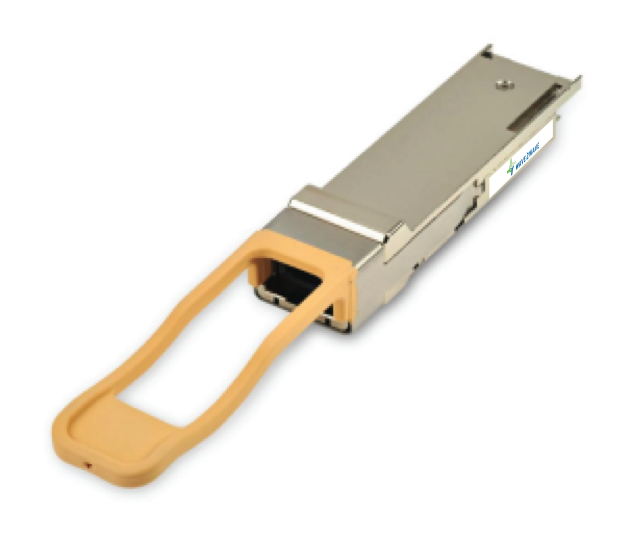

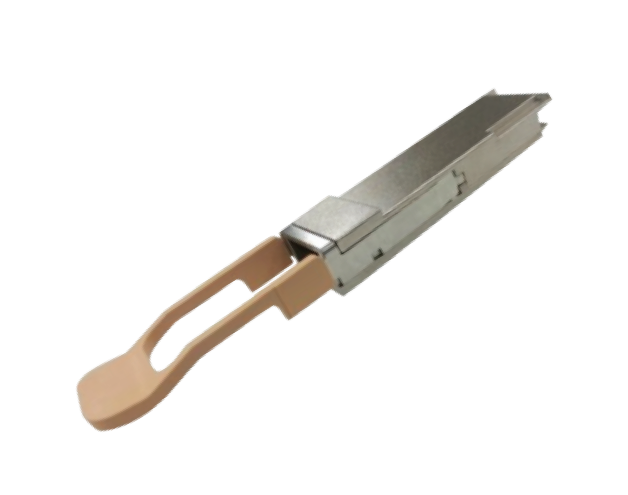

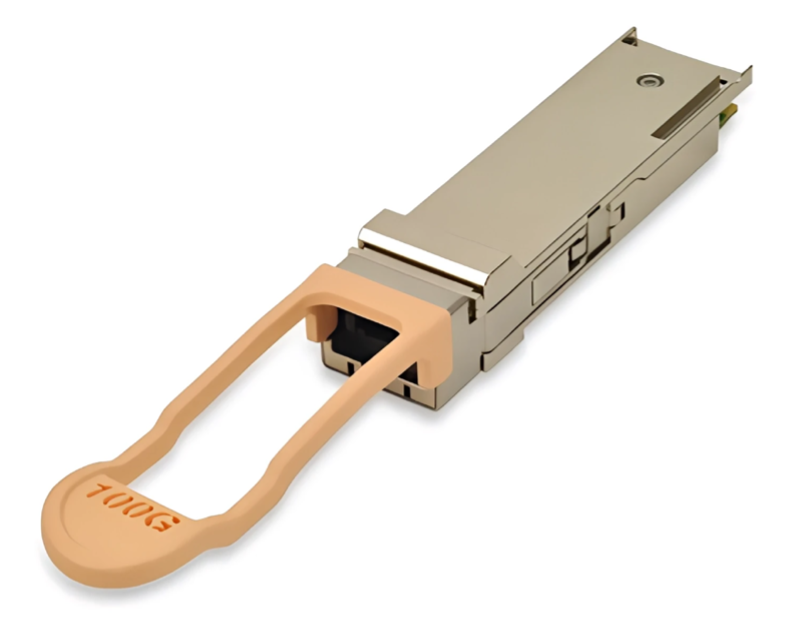

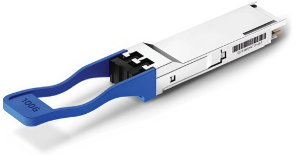

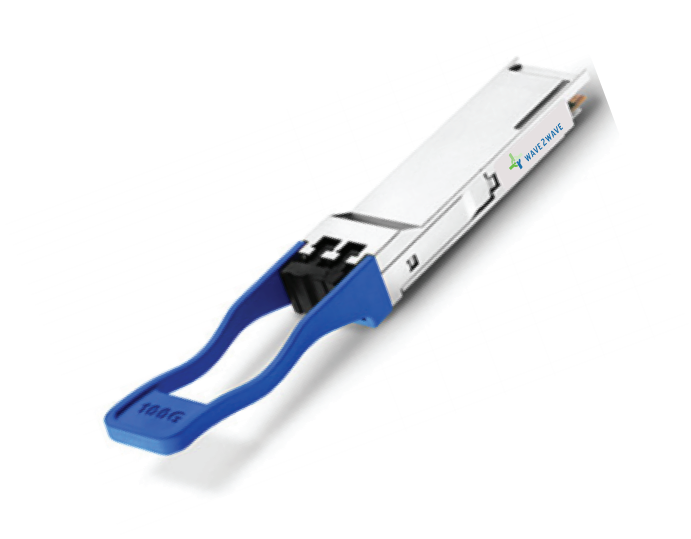

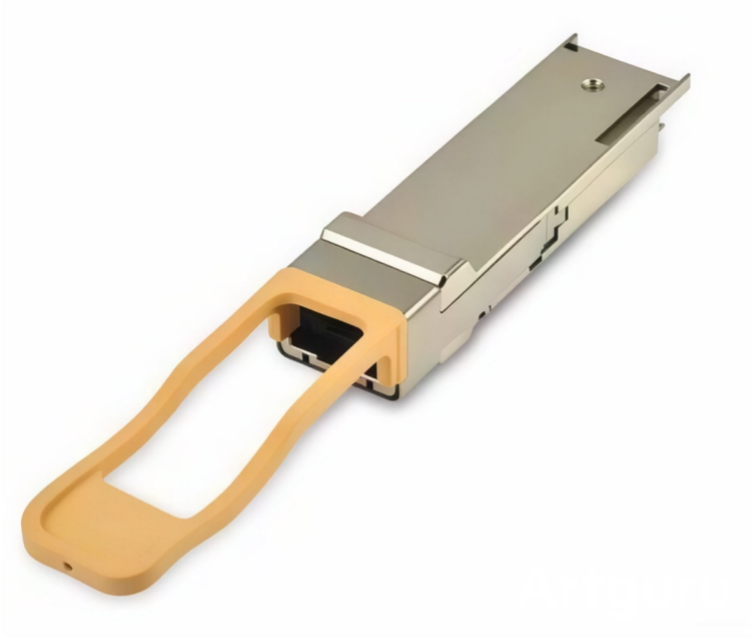

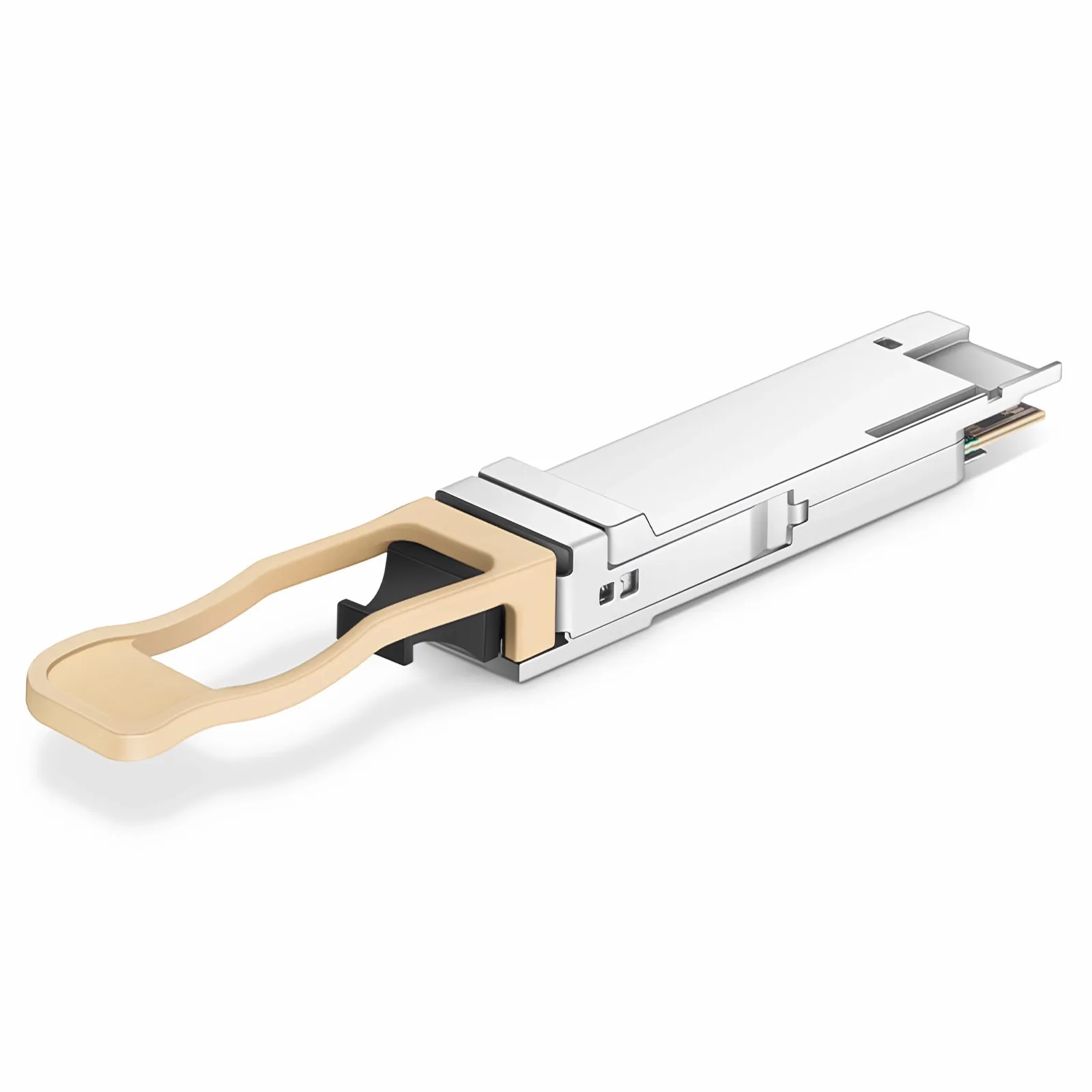

200G, 100G & 40G QSFP Transceivers
Proven QSFP112, QSFP56, QSFP28, and QSFP+ form factors for mainstream data center applications. Hot-swappable modules with comprehensive reach options.

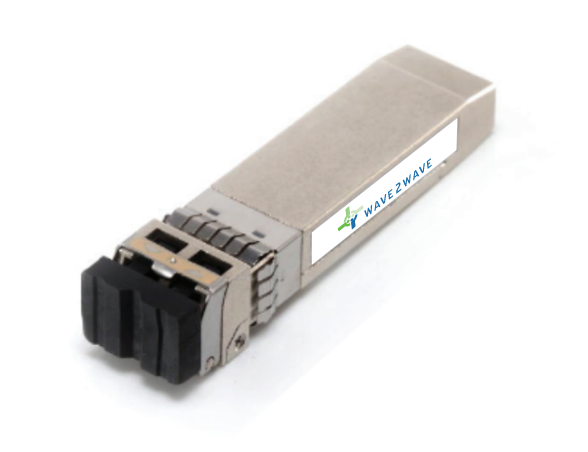

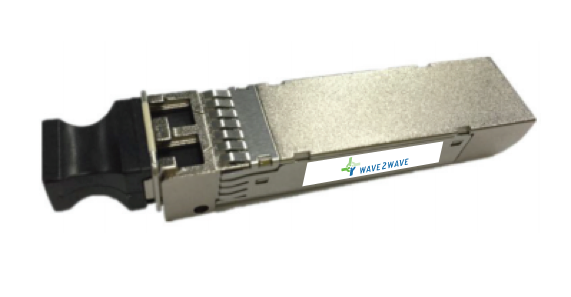

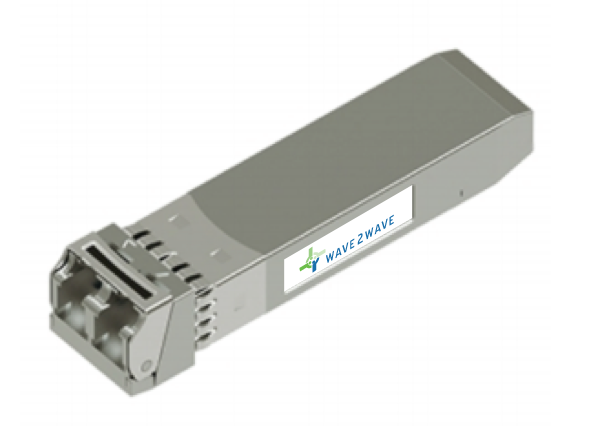

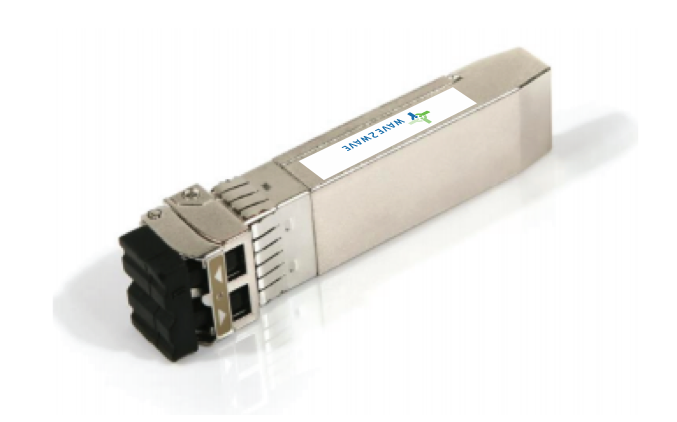

25G, 10G & 1G SFP Transceivers
Compact SFP28, SFP+, and SFP modules for ToR switches, access layer, and server connectivity. Industry-standard form factor.
Transceiver Selection Guide
AI/HPC Clusters
Ultra-low latency GPU-to-GPU interconnects for training and inference workloads
- 800G OSFP SR8 for spine-leaf fabric
- 400G QSFP-DD SR8 for ToR switches
- Use with OM5 MMF for maximum reach
Data Center Interconnect
Campus and metro connectivity between data center facilities
- 400G QSFP-DD LR4 for 10km metro DCI
- 400G QSFP-DD FR4 for 2km campus DCI
- Use with G.652 SMF infrastructure
Enterprise Networks
Access layer, ToR switches, and server connectivity
- 100G QSFP28 SR4 for spine uplinks
- 25G SFP28 SR for server NICs
- 10G SFP+ SR for legacy infrastructure
Form Factor Comparison
| Form Factor | Speeds | Lanes | Power | Best For |
|---|---|---|---|---|

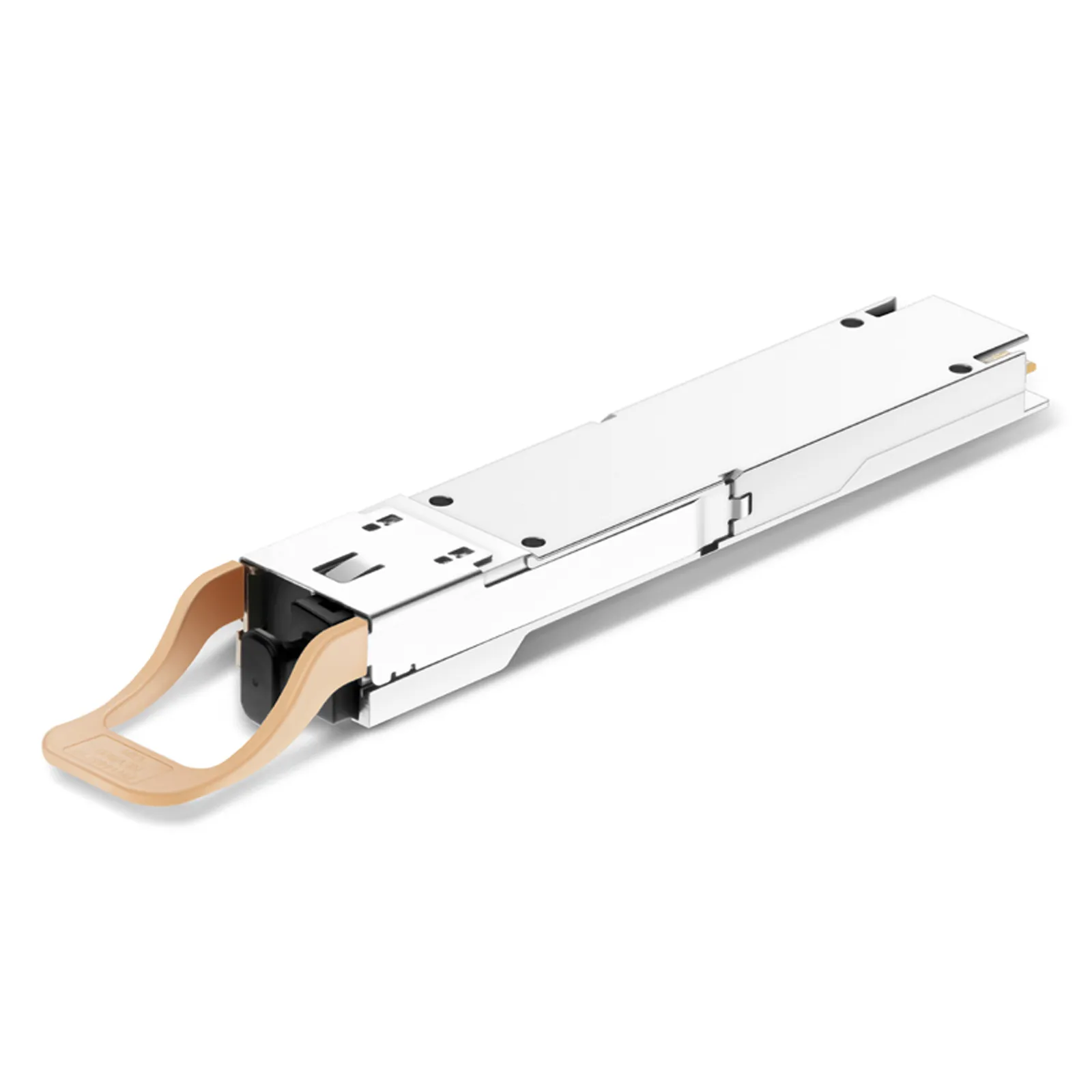

| OSFP | 800G, 2×400G | 8×100G PAM4 | <15W | AI/HPC clusters, next-gen DCI |

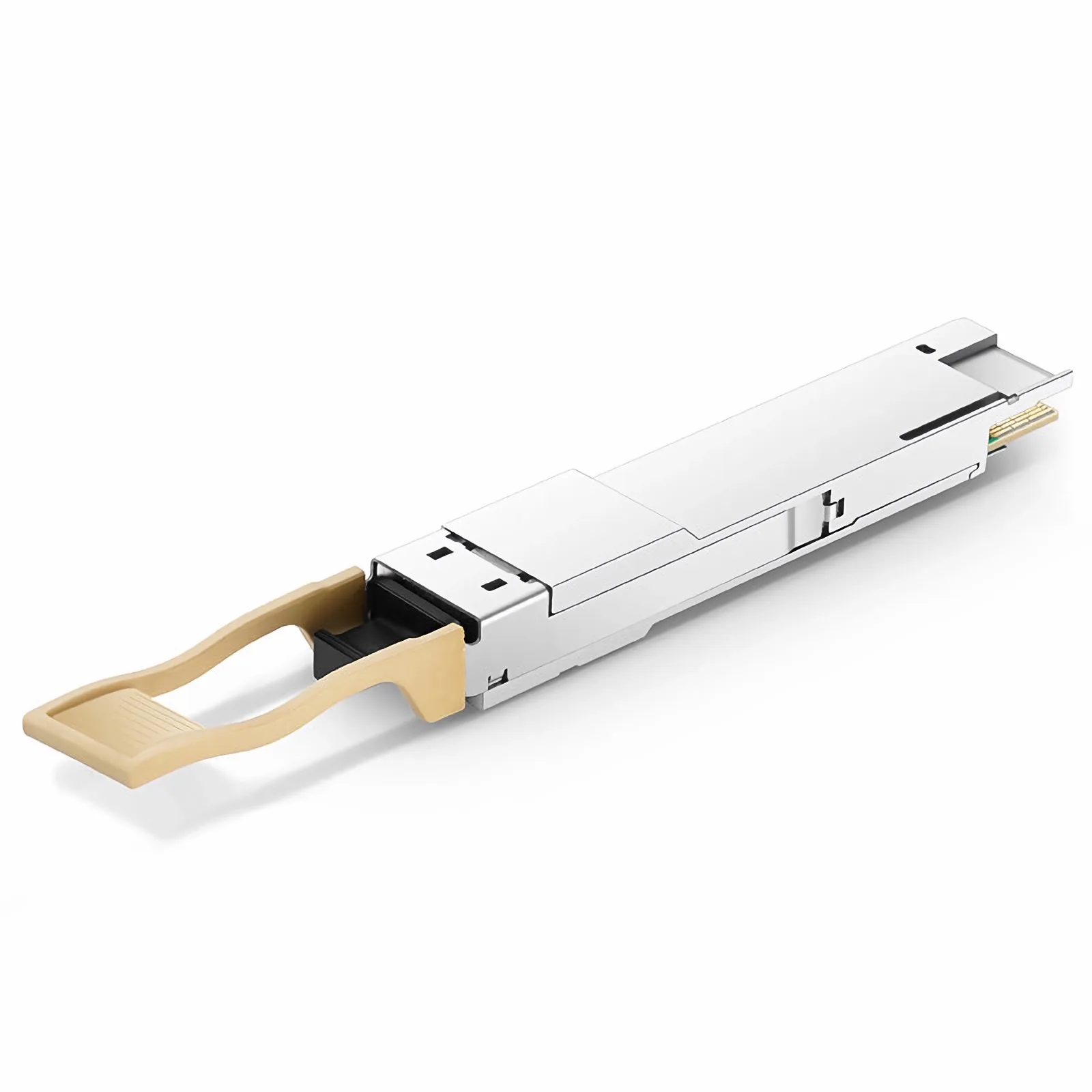

| QSFP-DD | 400G, 2×200G, 4×100G | 8×50G PAM4 | <12W | Data center spine-leaf, DCI |

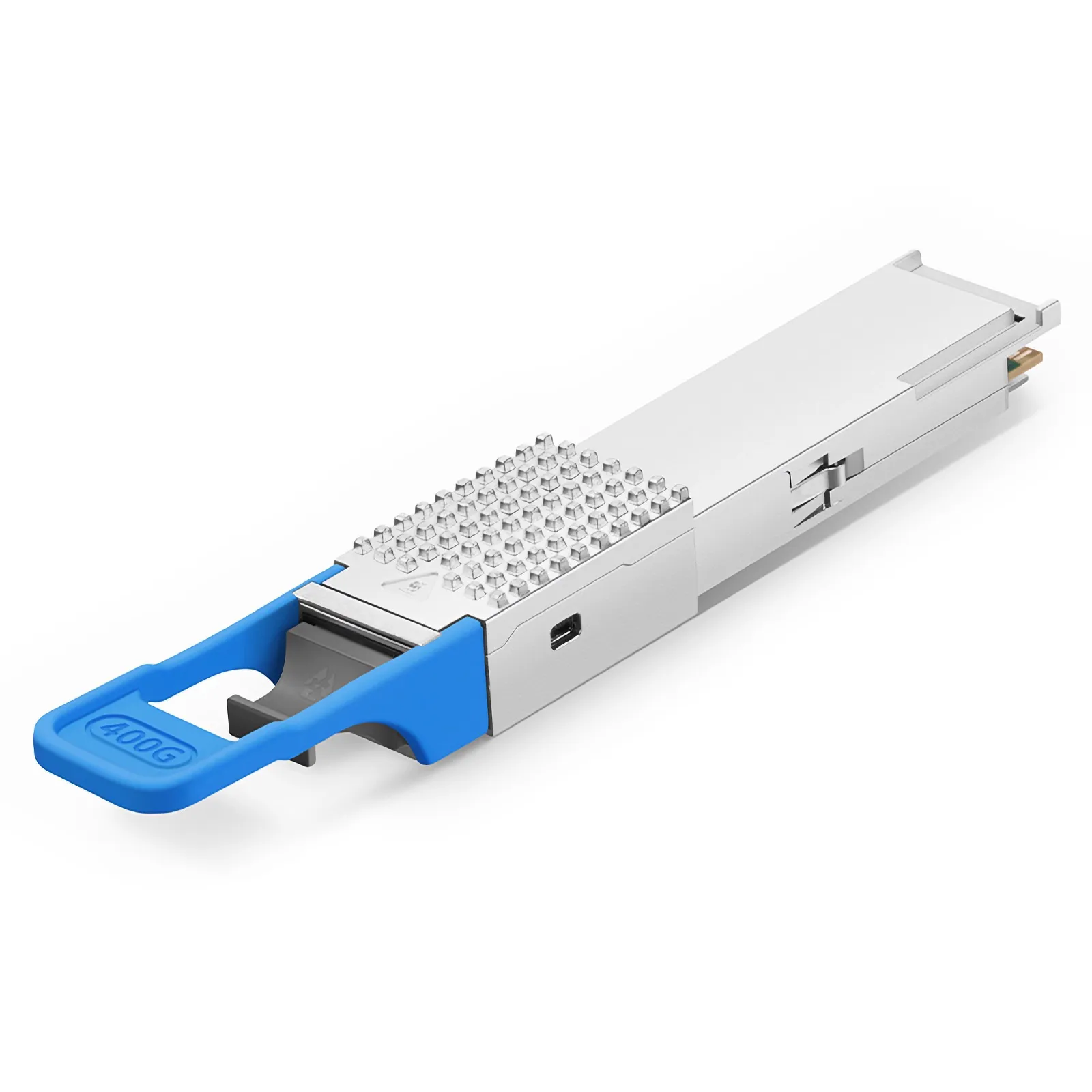

| QSFP112 | 400G | 4×100G PAM4 | <12W | Next-gen 400G, compact form factor |
| QSFP56 | 200G | 4×50G PAM4 | <5W | Storage networks, migration path |

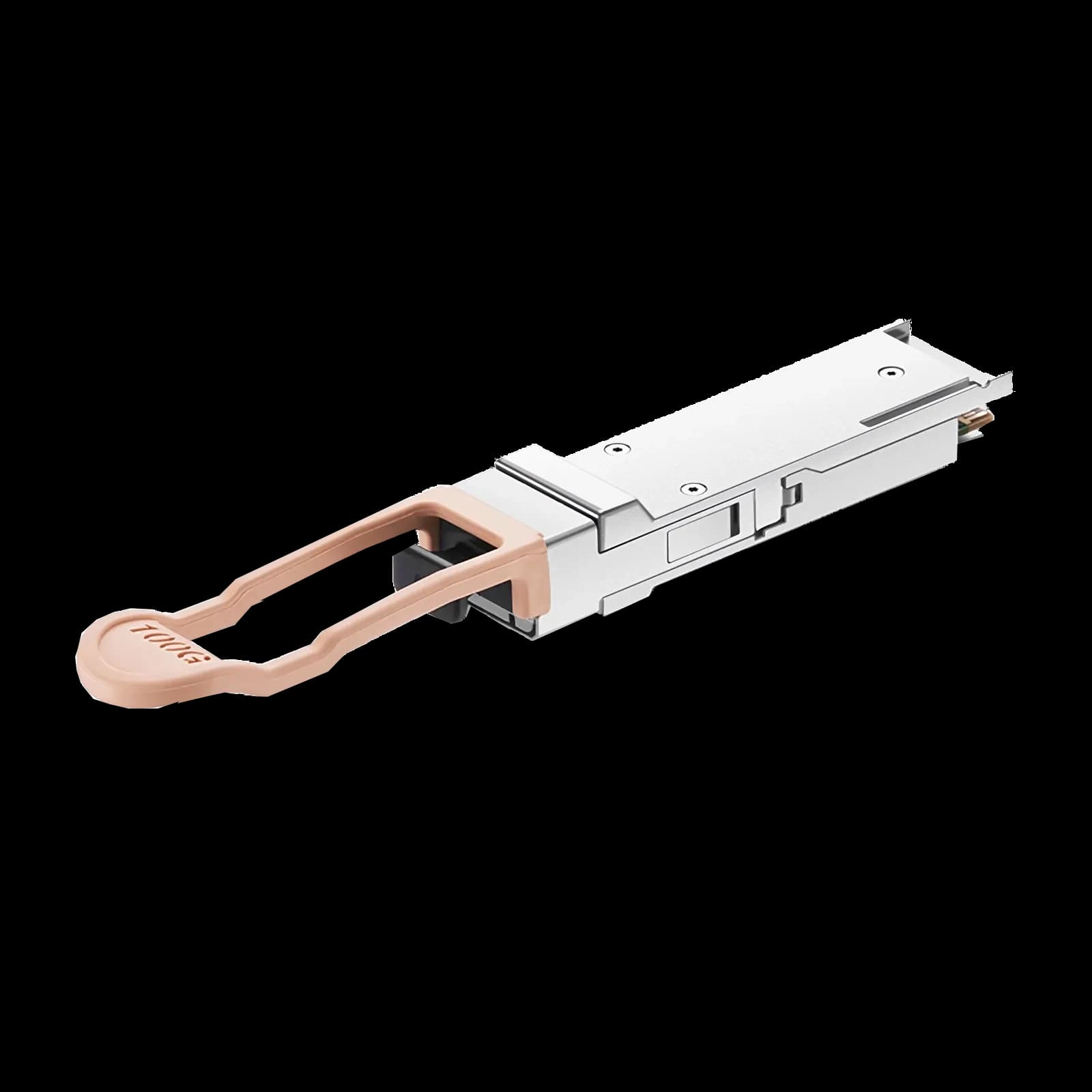

| QSFP28 | 100G, 4×25G | 4×25G NRZ | <3.5W | Mainstream data center, ToR uplinks |
| QSFP+ | 40G, 4×10G | 4×10G | <3.5W | Legacy infrastructure, campus backbone |

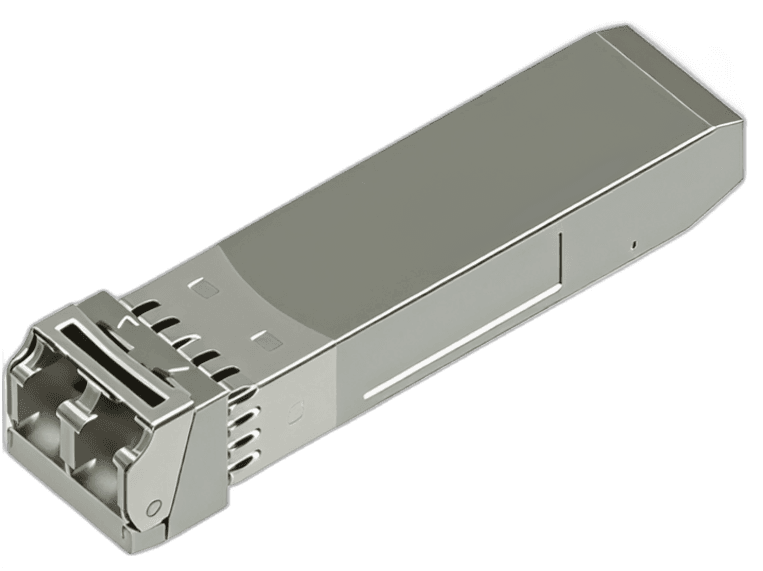

| SFP28 | 25G | 1×25G NRZ | <1.5W | Server NICs, ToR downlinks |

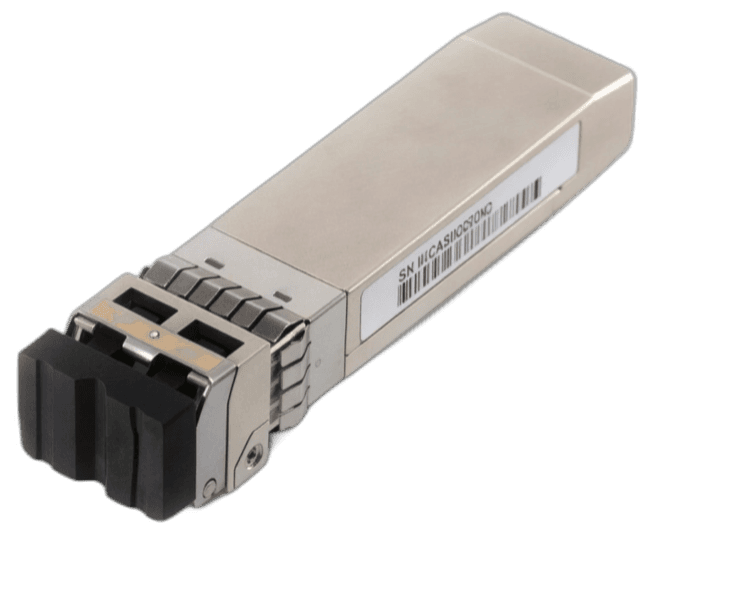

| SFP+ | 10G | 1×10G | <1W | Access layer, enterprise switching |

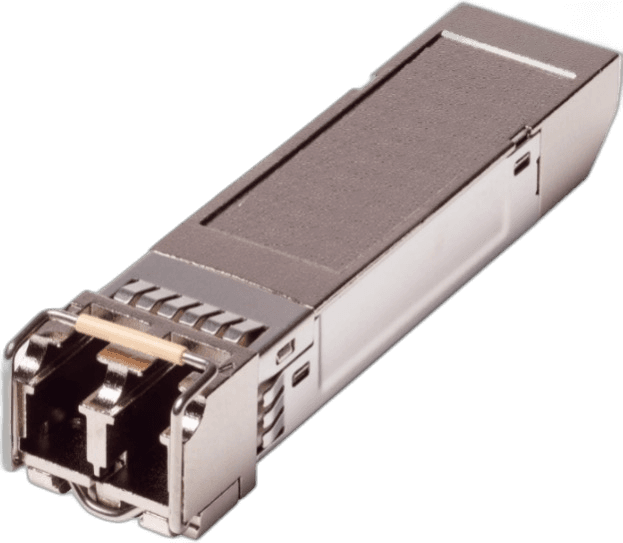

| SFP | 1G | 1×1G | <1W | Gigabit Ethernet, legacy systems |
Why Wave2Wave Transceivers
100% Factory Tested
Every transceiver undergoes comprehensive electrical, optical, and thermal testing before shipment. Full test reports included.
MSA Compliant
Fully compliant with industry MSAs (Multi-Source Agreements) ensuring compatibility across all major switch platforms.
Digital Diagnostics
DDM (Digital Diagnostics Monitoring) via I2C interface for real-time monitoring of TX/RX power, temperature, and voltage.
Custom Coding
Custom EEPROM coding available for multi-vendor compatibility. Supports Cisco, Arista, Juniper, Dell, and more.
Need Help Selecting Transceivers?
Our optical engineers provide complete compatibility testing, custom coding services, and technical support to ensure seamless integration with your network infrastructure.
